20 kW Perkins Diesel Generator

From $12,794.14

Most popular whole-home generator

• Perkins 1800 RPM 4-cylinder diesel engine
• Can be used for full-time power if needed
• Brushless generator with automatic voltage regulation provides clean, safe power for all your sensitive electronics.
• Advanced instrumentation, protection and control with auto-start & exercise
• Compatible with all two-wire start systems
• Includes battery, residential muffler & fuel tank
• Available with silenced weather enclosure and high-capacity fuel tank

Add to Cart
20 kW Diesel Home Generator
20 kW Perkins Diesel Generator
From $12,794.14
Options & Accessories
Get Quote
Currency Switcher

Rating: 4.5 out of 5.
Shipping to USA and Canada
  • Insurance Included

20 kW Perkins Diesel Generator

This 20 kW Perkins Diesel Generator is an excellent option to power most homes during outages. Its ability to operate 24/7 when needed makes it so popular, often requiring nothing more than an oil change every 500 hours of operation. With the capacity to power your HVAC, fridge, freezer, stove and much more, this generator provides peace of mind, knowing it can outlast and outperform all other gas-type generators 20-1, and with less noise and maintenance.

Aurora Generators - Weather enclosure exploded view

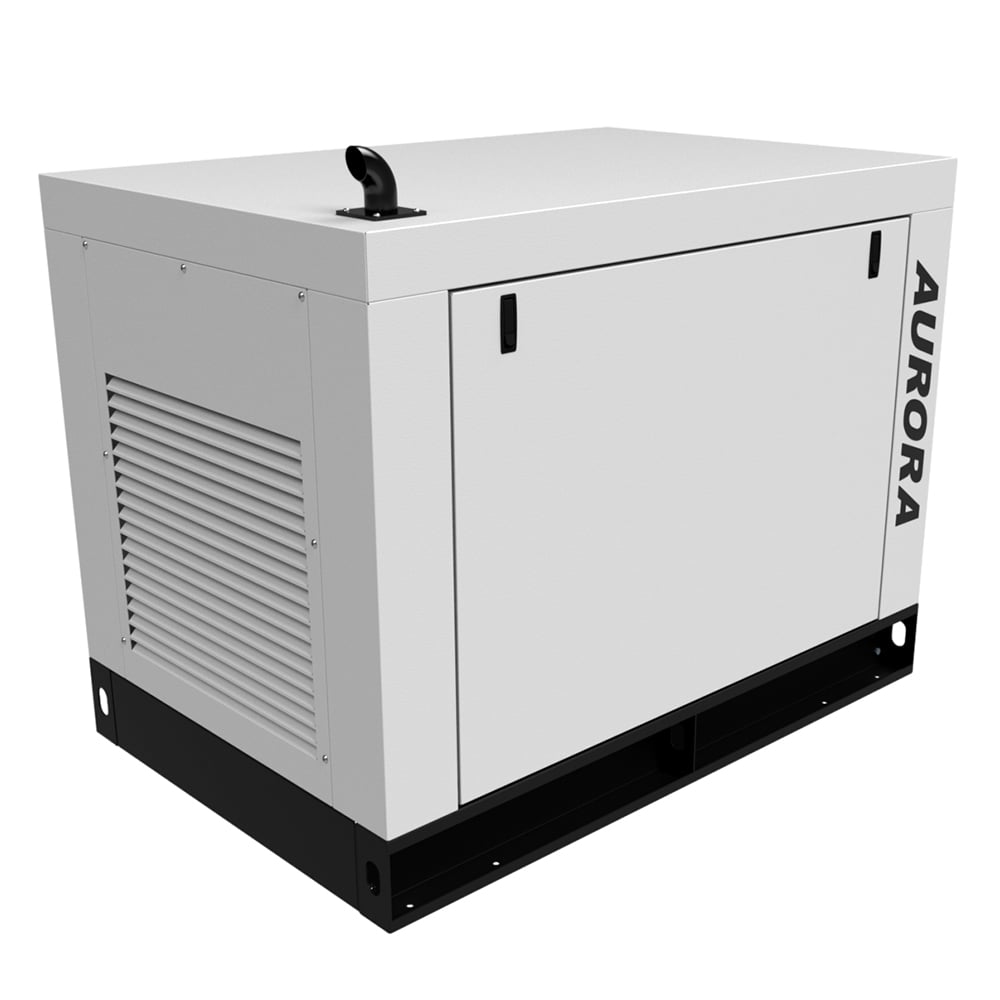

Weather Enclosures:

Aurora enclosures, installed at the factory, work with their corresponding generator sets to ensure optimal performance, security, and operator safety while protecting against harsh weather conditions. These enclosures are constructed using galvannealed steel and equipped with stainless steel fasteners for increased resistance to corrosion. Additionally, lift-off doors and access panels provide easy access for service and maintenance.

Aurora Generators - base frame and fuel tank exploded view

Construction

Aurora Generators are built tough. The steel frames and fuel tank are made of heavy gauge steel and power coated for corrosion resistance. Only stainless steel fasteners are used to assemble them.

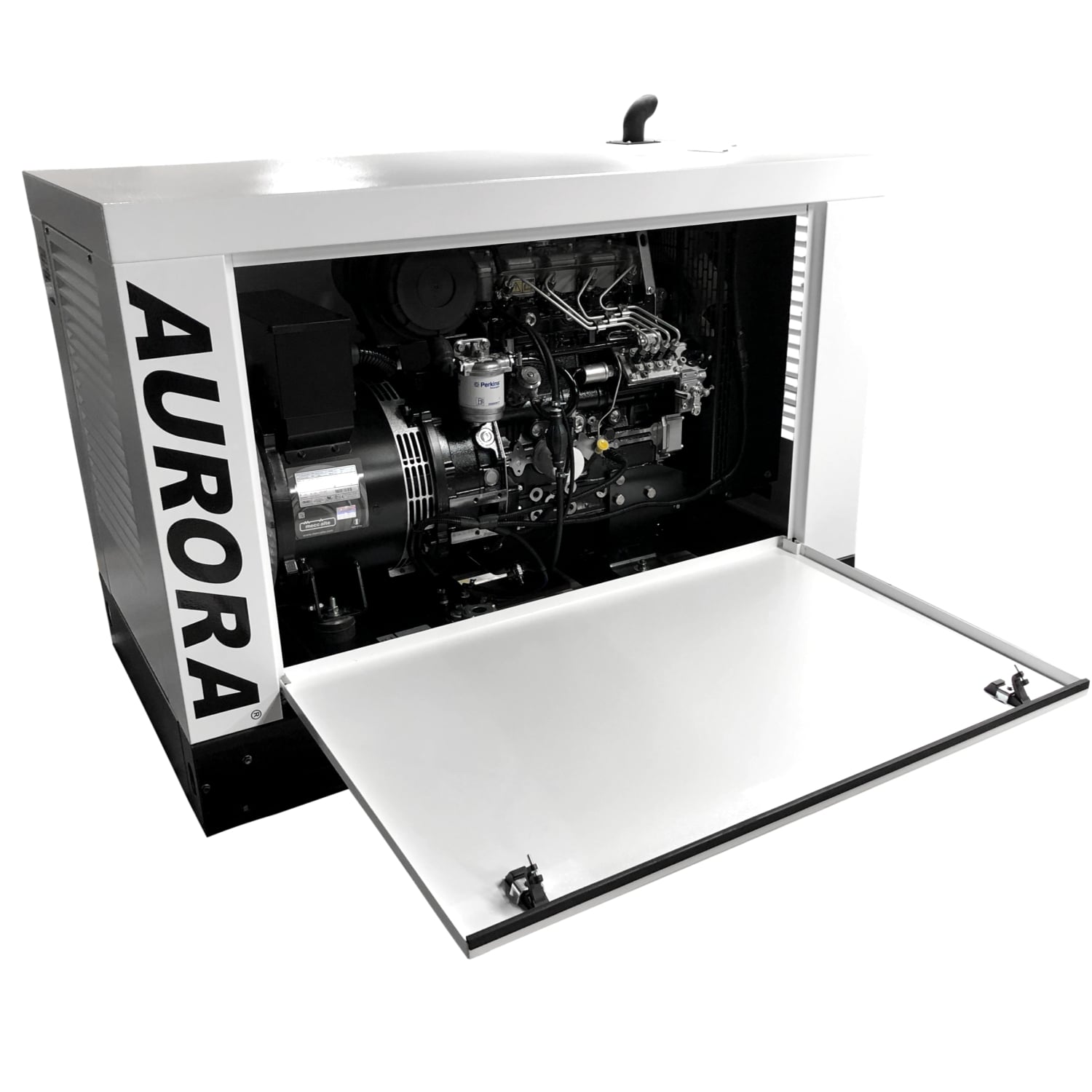

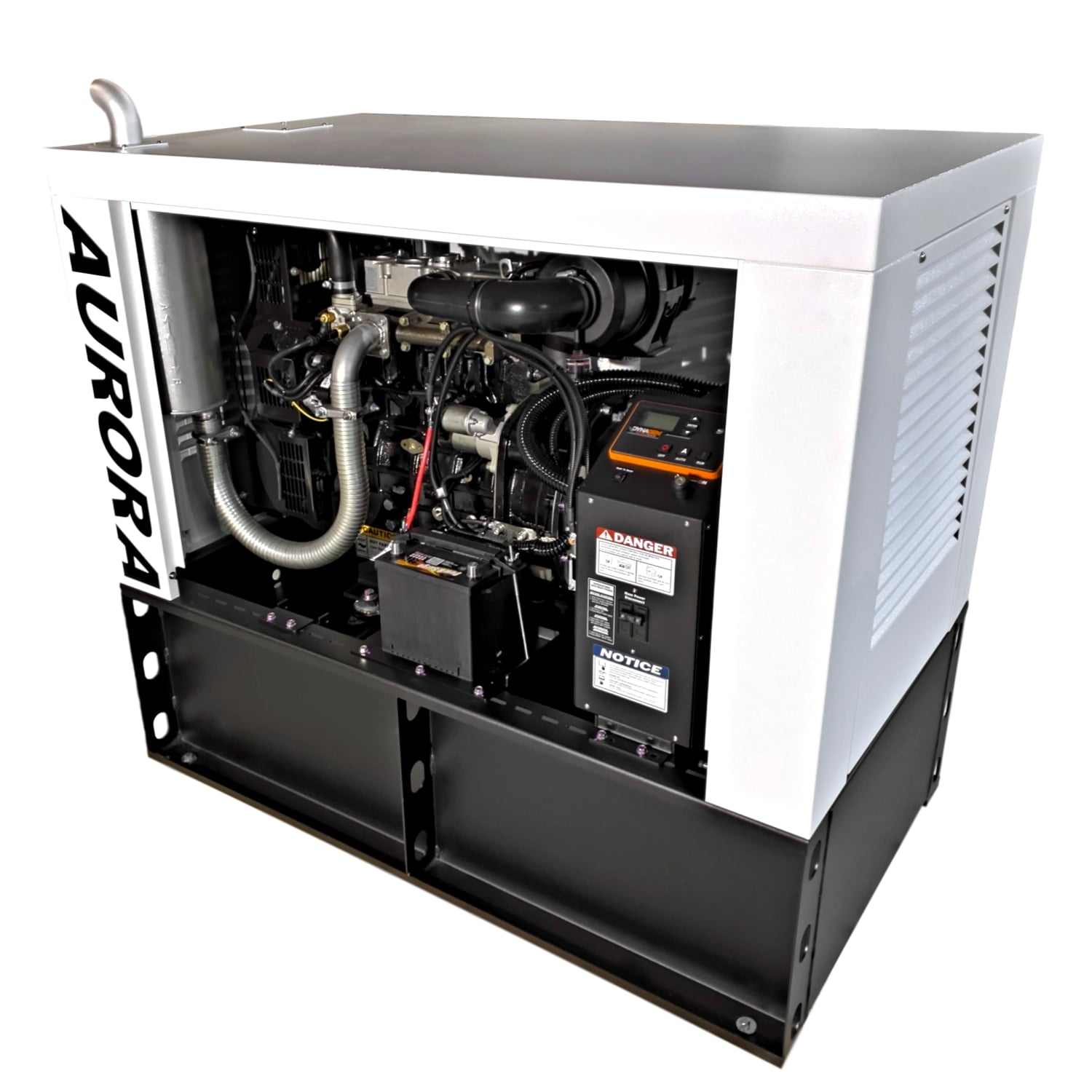

Perkins 404D-22G Diesel Engine

Powered by Perkins

Perkins engines are suitable for use in challenging conditions and can run for extended periods, making them an excellent choice for producing power. They have an expected lifespan of more than 20,000 hours. As a subsidiary of Caterpillar, a company known and respected worldwide, Perkins offers superior warranties and product support.

ECP28 Meccalte Alternator

Generator Head

Aurora Generators use Mecc Alte brushless and voltage-regulated alternators. They feature overload capability up to 300% for 20 seconds and maintain a voltage regulation of +/- 1%, ensuring stable and consistent power output.

DynaGen TG410 TG350

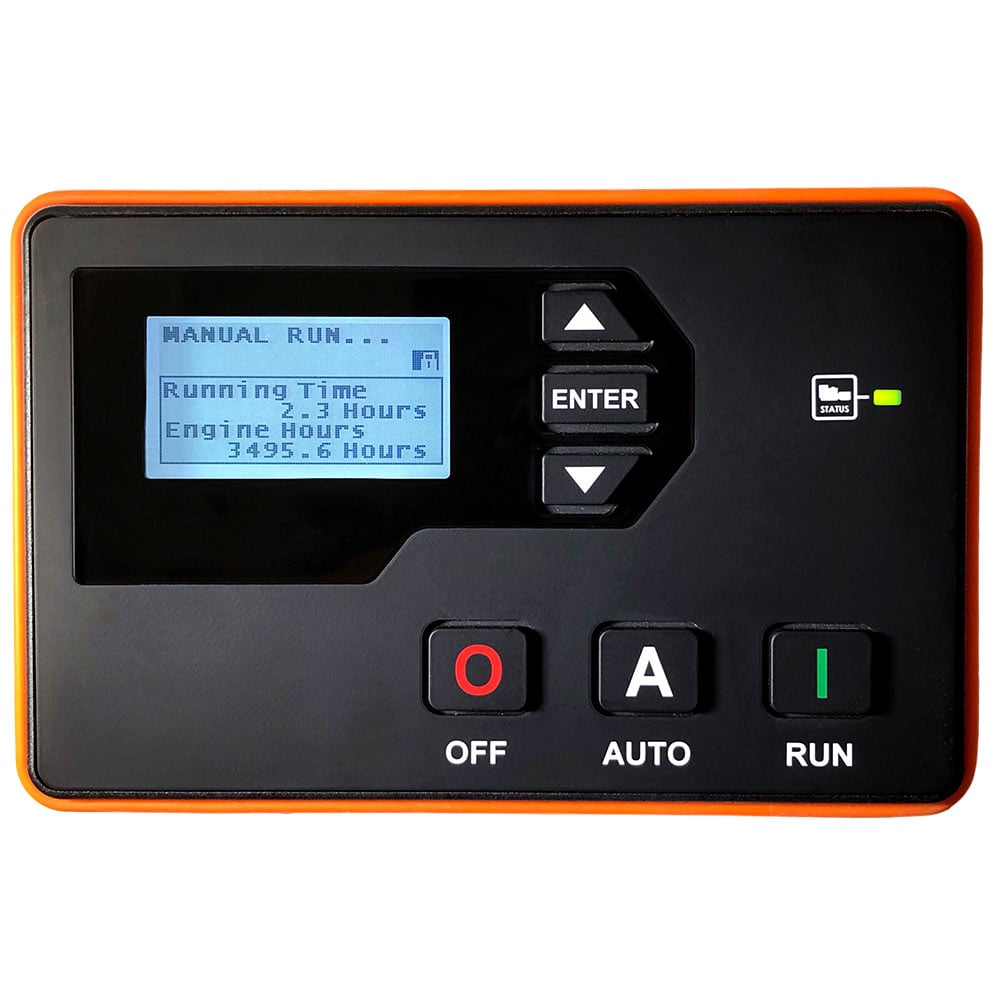

Protection, Monitoring and Control

The 6 kW Perkins Diesel Generator is equipped with a DynaGen TG350 controller. The controller is constructed to meet military specifications and is known for its ruggedness and ability to function under challenging environments.

Service Kits

Low Maintenance

Diesel generators have lower maintenance requirements compared to other types of generators. Specifically, the oil and filter only need to be changed every 500 hours of operation instead of every 100 hours for non-diesel generators. Aurora also carries a wide selection of parts and accessories for your generator.

Fuel Nozzle

Cost Effective

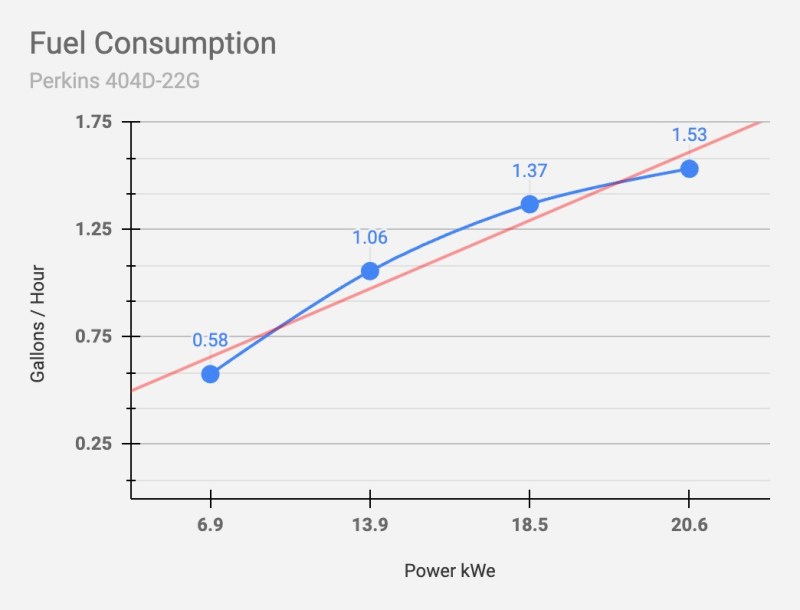

A diesel-powered generator can save over $100.00 in fuel per day when used to power a home, compared to natural gas, propane, or gasoline. This is because diesel fuel has a higher energy density than other fuels, meaning less fuel is required to generate the same amount of power. For example, a typical home would use 0.5 gallons of diesel an hour, while it would need 4-6 gallons of propane to generate the same amount of power.

Diesel Fuel Tanks

Fuel Tank Options

This generator comes equipped with an internal fuel tank. However, larger external fuel tanks can be purchased as an option for those requiring an extended, uninterrupted operation.

Aurora Support Staff

Lifetime Customer Support

Enjoy free lifetime customer support with every purchase. No matter when you need assistance, Aurora’s dedicated customer support team will be there to help you.

5 Year Warranty on Aurora Generators

Flexible Warranty

The Aurora 20 kW Perkins Diesel Generator comes with a 5-year comprehensive factory warranty. Extended warranties are also available.

Additional information

Dimensions 57 × 33 × 45 cm
Weather Enclosure

Include Weather Enclosure, No Weather Enclosure

Fuel Tank

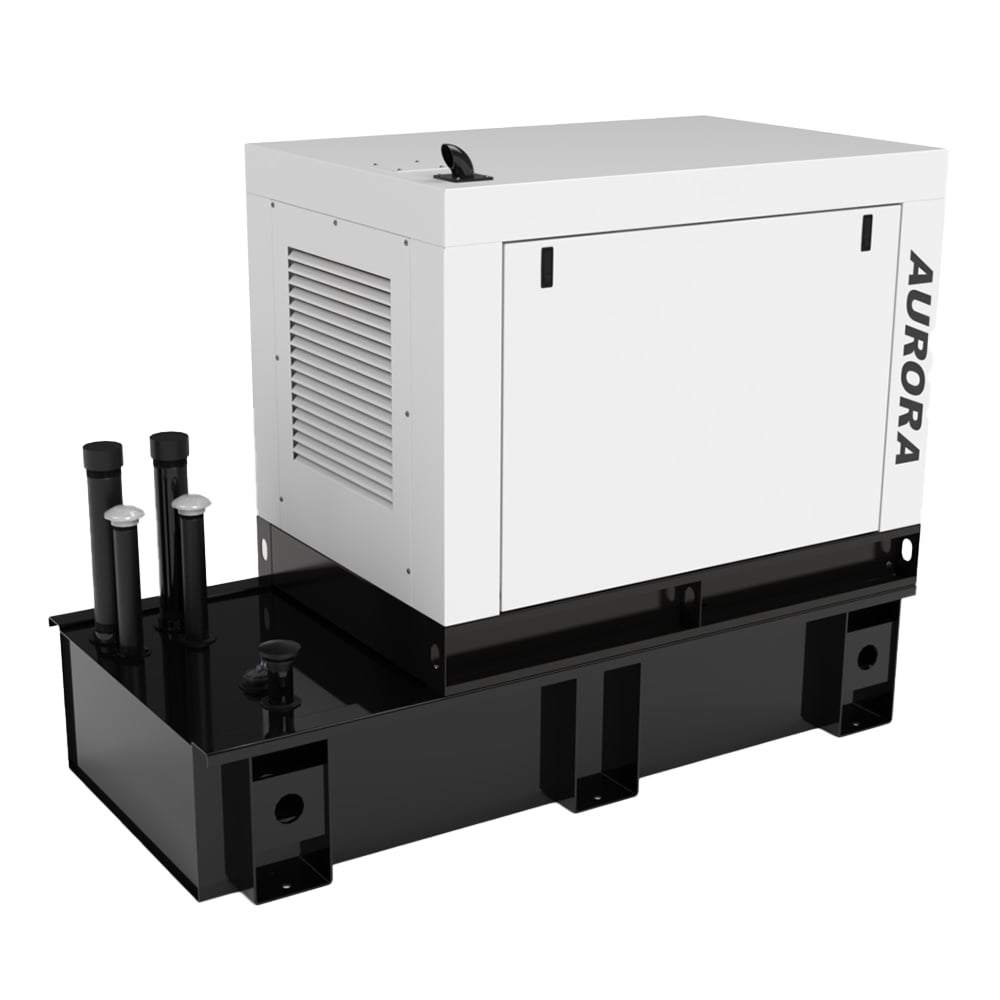

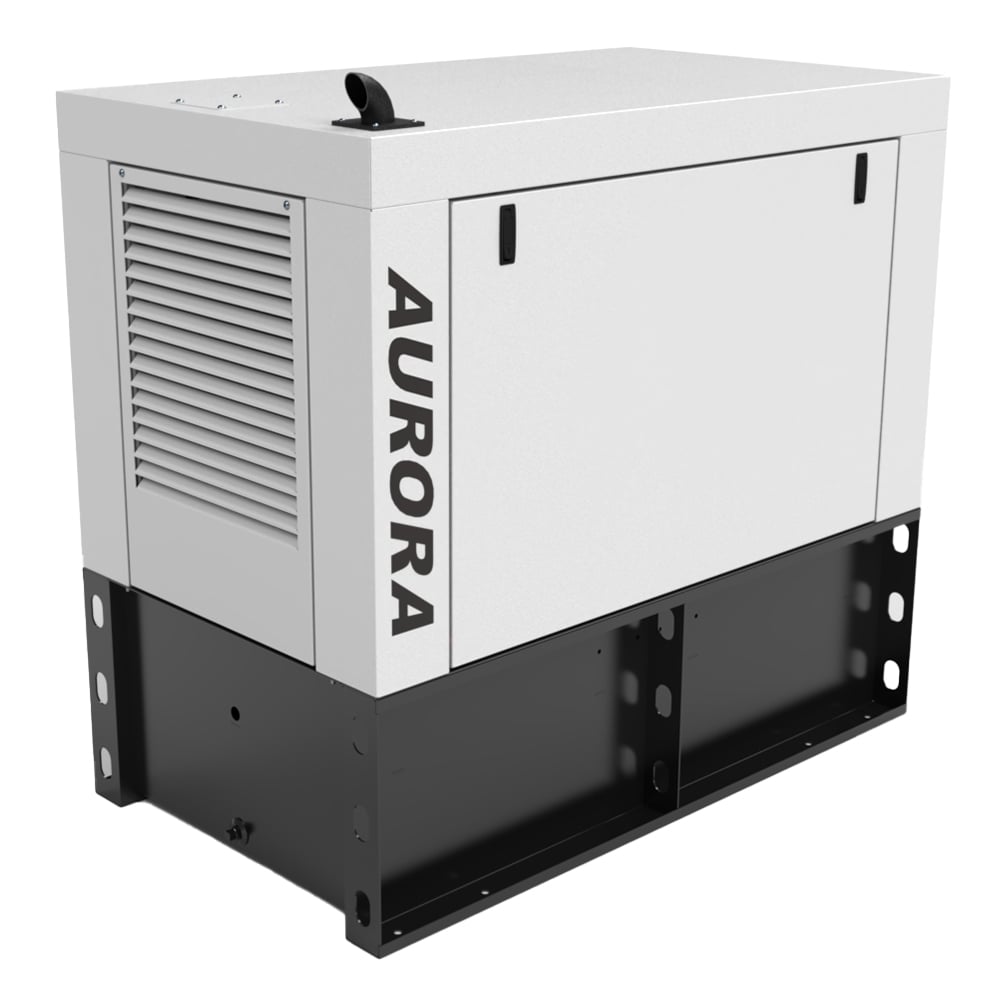

No Fuel Tank, 12 Gallon Fuel Tank, 50 Gallon Fuel Tank (USA), 100 Gallon Fuel Tank (Canada), 100 Gallon Fuel Tank (USA)

Brand

Perkins

Model

AGi20P

Generator Type

Emergency Standby

Output Power

20 kW

Output Voltage

120/240 Volts

Output Current

160 / 80 Amps

Perkins Engine

404D-22G

Mecc Alte Alternator

NPE32 L4 C

DynaGen Controller

TG350

Downloads

Generator AGi20P-E Downloads
AGi20P-E Specifications PDF
AGi20P-E 3D CAD PDF (with standard fuel tank)
AGi20P-E-50 3D CAD PDF (with 50 gallon fuel tank)
AGi20P-E-100 3D CAD PDF (with 100 gallon fuel tank)

Perkins Engine 404D-22G Downloads
Perkins KENR6223-03 404D-22G Engine Specifications
Perkins SEBU8311-10 Operation and Maintenance Manual
Perkins M0113102-04 404D-22TG Fluid Recommendations

Mecc Alte Alternator Downloads
NPE32 User Manual
ECP28 User Manual
DSR Voltage Regulator Manual

Generator Controller
DynaGen Controller TG350DynaGen Controller TG410
DynaGen TG350 SpecificationsDynaGen TG410 Specifications
DynaGen TG350 User ManualDynaGen TG410 User Manual
Dynagen AccessoriesDynagen Accessories
DynaGen Rapidcore Software User ManualDynaGen Rapidcore Software User Manual
Rapidcore Software DownloadRapidcore Software Download
DynaGen TG350 Firmware 1.94.03DynaGen TG410 Firmware 1.94.03
DynaGen J1939 Reference ManuelDynaGen J1939 Reference Manuel
DynaGen Wiring Harness GuideDynaGen Wiring Harness Guide
DynaGen Modbus Reference Manual
