10 kW Perkins Diesel Generator

From $11,320.50



  • American-made Perkins engine
  • Can be used for part-time or full-time power
  • 5-Year warranty
  • Rigid UV-treated steel weather enclosure
  • 500-hour service interval
  • Uses 0.5 gallons of diesel an hour on average
Add to Cart

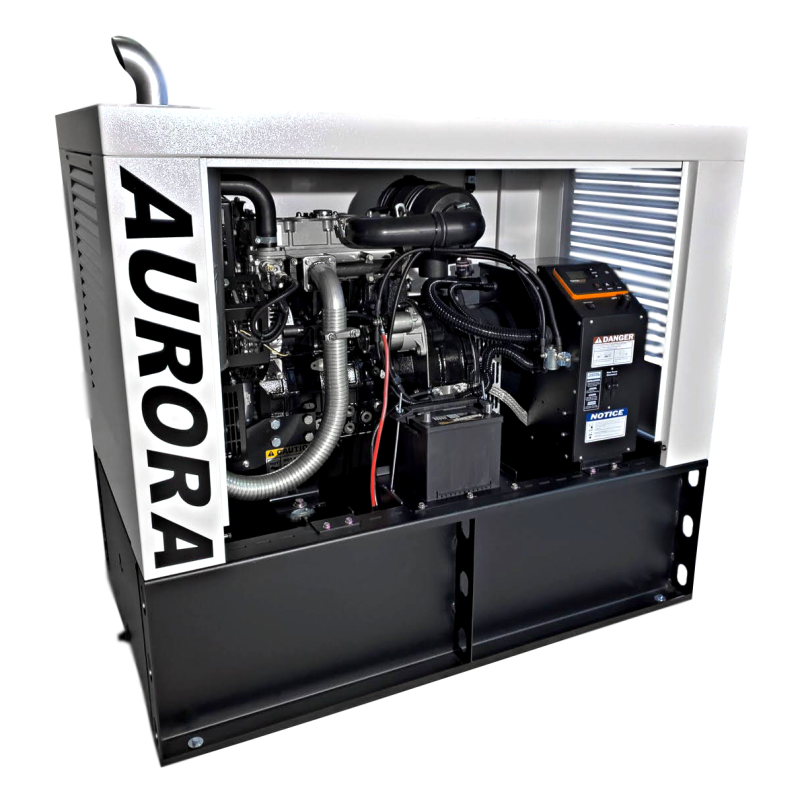

10 kW Perkins Diesel Generator with 403F-11G Engine and Mecc Alte NPE32 Alternator - Features DynaGen TG350 TG410 Controller
10 kW Perkins Diesel Generator
From $11,320.50
Options & Accessories
Get Quote
Currency Switcher

Rating: 4.5 out of 5.
Shipping to USA and Canada
  • Insurance Included

10 kW Perkins Diesel Generator

Ensure reliable and efficient power with Aurora Generators’ 10 kW Perkins Diesel Generator. This Perkins Generator offers low fuel consumption and a typical engine life of 20-30 thousand hours; you’ll save on replacements and repairs. The advanced generator controller offers complete instrumentation, protection, and control for smooth operation. Safe for electronics, it’s ideal for off-grid and solar homes, providing backup to your home and battery charging. Choose the best; choose Aurora Generators’ Perkins Diesel Generator.

Aurora Generators - Weather enclosure exploded view

Weather Enclosures:

Aurora enclosures, installed at the factory, work with their corresponding generator sets to ensure optimal performance, security, and operator safety while protecting against harsh weather conditions. These enclosures are constructed using galvannealed steel and equipped with stainless steel fasteners for increased resistance to corrosion. Additionally, lift-off doors and access panels provide easy access for service and maintenance.

Aurora Generators - base frame and fuel tank exploded view

Construction

Aurora Generators are built tough. All steel frames and fuel tank are all constructed out of heavy gauge steel and power coated for corrosion resistance. Only stainless steel fasteners are used to assemble it.

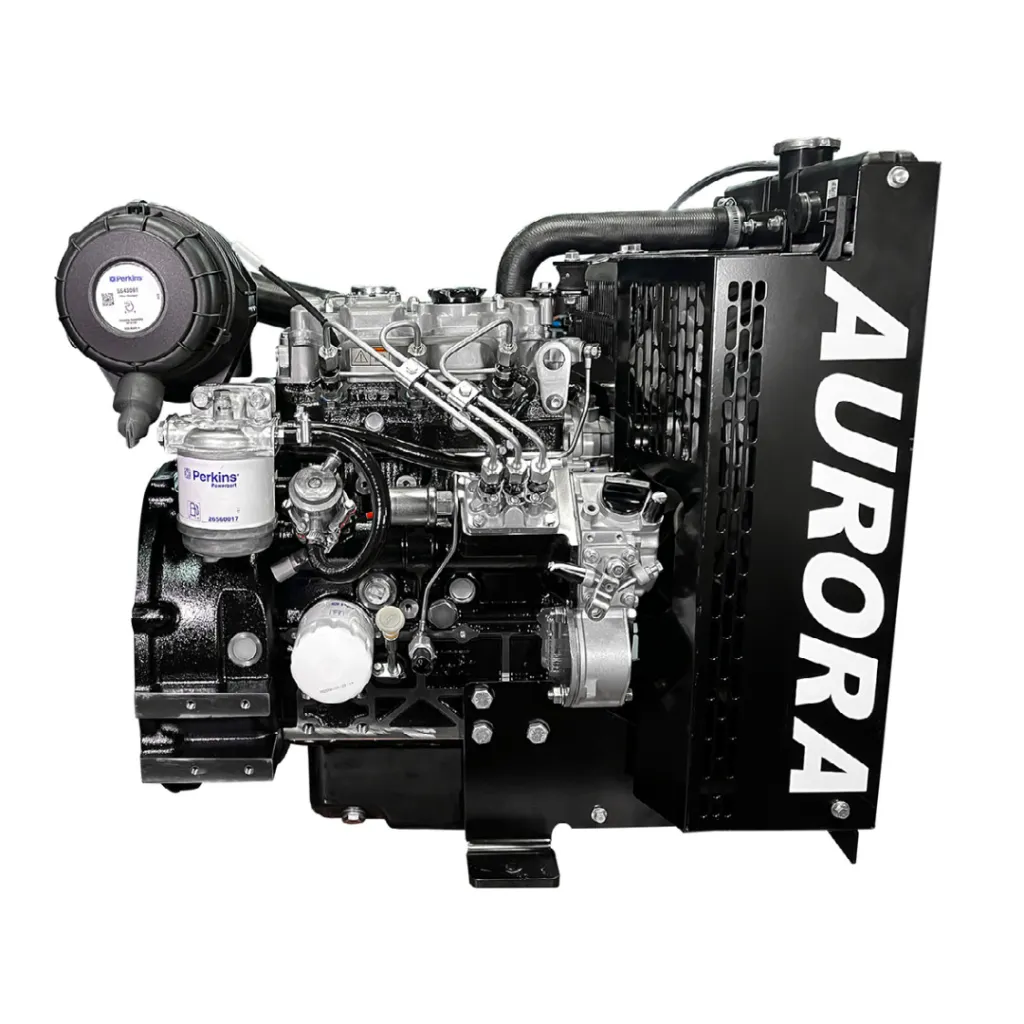

Diesel Engines

Powered by Perkins

Perkins engines are suitable for use in challenging conditions and can run for extended periods, making them an excellent choice for producing power. They have an expected lifespan of more than 20,000 hours. As a subsidiary of Caterpillar, a company known and respected worldwide, Perkins offers superior warranties and product support.

Liquid-cooled generator engines such as the one used on this generator offer better temperature regulation, reduce thermal stress, and decrease noise levels. Additionally, this generator is designed for better heat dissipation making it more efficient than air-cooled engines. It can operate full-time without requiring a cooldown period.

ECP28 Meccalte Alternator

Generator Head

Aurora Generators use Mecc Alte brushless and voltage-regulated alternators. They feature overload capability up to 300% for 20 seconds and maintain a voltage regulation of +/- 1%, ensuring stable and consistent power output.

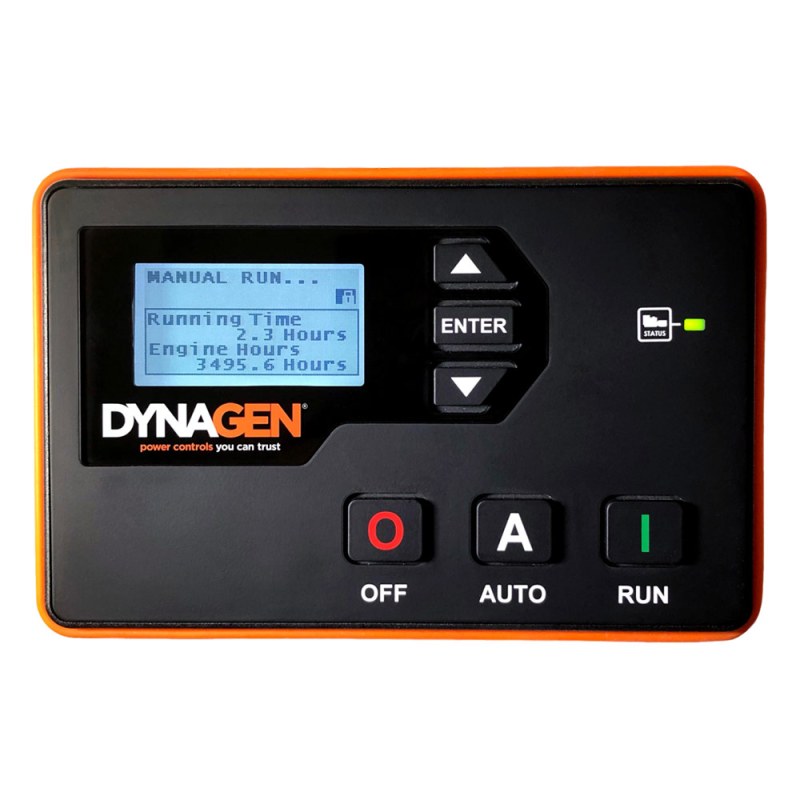

DynaGen TG410 TG350

Protection, Monitoring and Control

The 6 kW Perkins Diesel Generator is equipped with a DynaGen TG350 controller. The controller is constructed to meet military specifications and is known for its ruggedness and ability to function under challenging environments.

Aurora Support Staff

Lifetime Customer Support

Enjoy free lifetime customer support with every purchase. No matter when you need assistance, Aurora’s dedicated customer support team will be there to help you.

Generator Warranty

Flexible Warranty

The Aurora 10 kW Yanmar Diesel Generator comes with a 5-year comprehensive factory warranty. Extended warranties are also available.

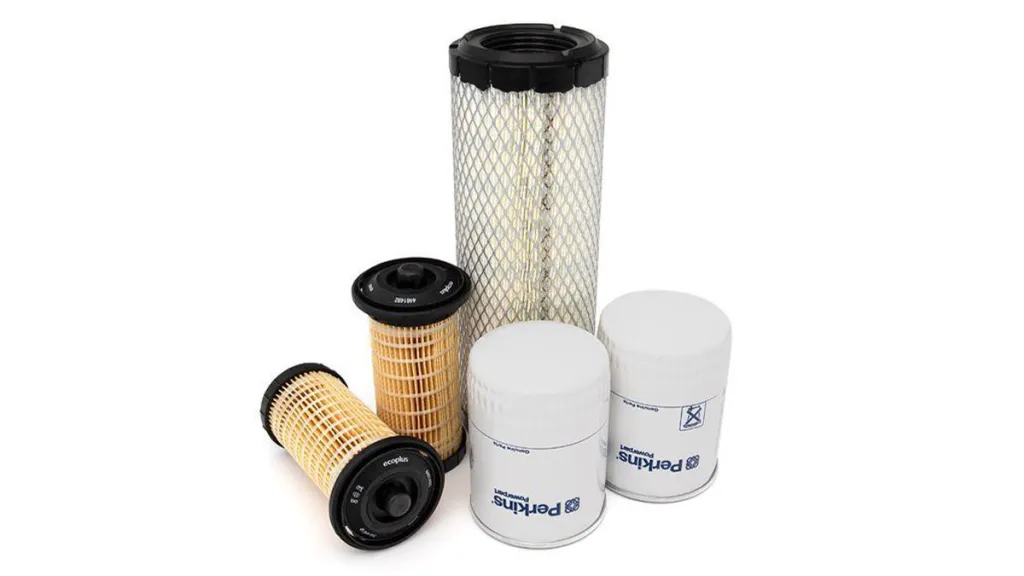

Perkins Generator Maintenance Kit

Low Maintenance

Diesel generators have lower maintenance requirements compared to other types of generators. Specifically, the oil and filter only need to be changed every 500 hours of operation instead of every 100 hours for non-diesel generators. Aurora also carries a wide selection of parts and accessories for your generator.

Fuel Nozzle

Cost Effective

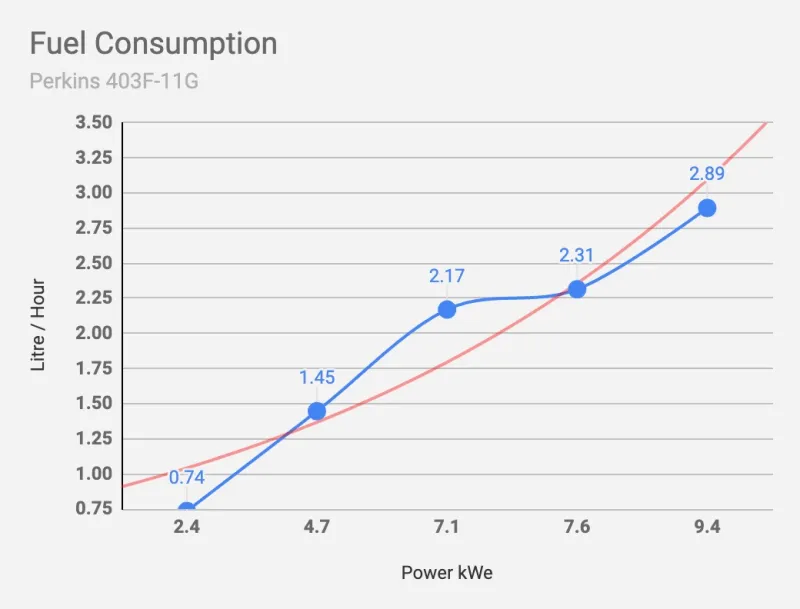

A diesel-powered generator can save over $100.00 in fuel per day when used to power a home, compared to natural gas, propane, or gasoline. This is because diesel fuel has a higher energy density than other fuels, meaning less fuel is required to generate the same amount of power. For example, a typical home would use 0.5 gallons of diesel an hour, while it would need 4-6 gallons of propane to generate the same amount of power.

Diesel Fuel Tanks

Fuel Tank Options

This generator comes equipped with an internal fuel tank. However, larger external fuel tanks can be purchased as an option for those requiring an extended, uninterrupted operation.

an empty gas station
Technical Insights

How long does diesel fuel last?

The length of time fuel will remain useable in your tank is dependent on the fuel type. Regular gasoline has a shelf life of three to six months, while diesel can last up to a year if you don’t treat, it before it begins to degrade.

Read More »

Additional information

Weight 498 kg
Dimensions 144.78 × 83.82 × 119.38 cm
Weather Enclosure

Include Weather Enclosure, No Weather Enclosure

Fuel Tank

No Fuel Tank, 12 Gallon Fuel Tank, 50 Gallon Fuel Tank (USA), 100 Gallon Fuel Tank (Canada), 100 Gallon Fuel Tank (USA)

Brand

Perkins

Model

AGi10P

Generator Type

Emergency Standby, Off-Grid, Prime Power

Output Power

10 kW

Output Voltage

120/240 Volts

DynaGen Controller

TG350

Output Current

80 / 40 Amps

Perkins Engine

403F-11G

Mecc Alte Alternator

NPE32 2S4 C

Downloads

AGi10P-E Downloads
AGi10P-E Specifications PDF
AGi10P-E 3D CAD PDF (with standard fuel tank)
AGi10P-E-50 3D CAD PDF (with 50 gallon tank)
AGi10P-E-100 3D CAD PDF (with 100 gallon tank)

Perkins 403F-11G Downloads
Perkins | M0081088-01 | 403F-11G Engine Specifications
Perkins | SEBU9064-07 | 403F-11G | Operations and Maintenance Manual
Perkins | M0113102-03 | 403F-15G | Fluids Recommendations

Generator Specifications
ModelAGi50P
TypeStandby Diesel Generator
Power55,000 Watts
Output Voltage120/240 Volts
Output Current400 / 200 Amps
Auto Start ControllerDynaGen TG350
ExerciseYes
EnginePerkins 1104
Alternator / Generator MeccAlte
Fuel TankOptional 50 Gallon
Weight1525 lbs
Dimensions60" x 40" x 50" Enclosed
*Specifications are subject to change

Generator Controller
DynaGen Controller TG350DynaGen Controller TG410
DynaGen TG350 SpecificationsDynaGen TG410 Specifications
DynaGen TG350 User ManualDynaGen TG410 User Manual
Dynagen AccessoriesDynagen Accessories
DynaGen Rapidcore Software User ManualDynaGen Rapidcore Software User Manual
Rapidcore Software DownloadRapidcore Software Download
DynaGen TG350 Firmware 1.94.03DynaGen TG410 Firmware 1.94.03
DynaGen J1939 Reference ManuelDynaGen J1939 Reference Manuel
DynaGen Wiring Harness GuideDynaGen Wiring Harness Guide
DynaGen Modbus Reference Manual
