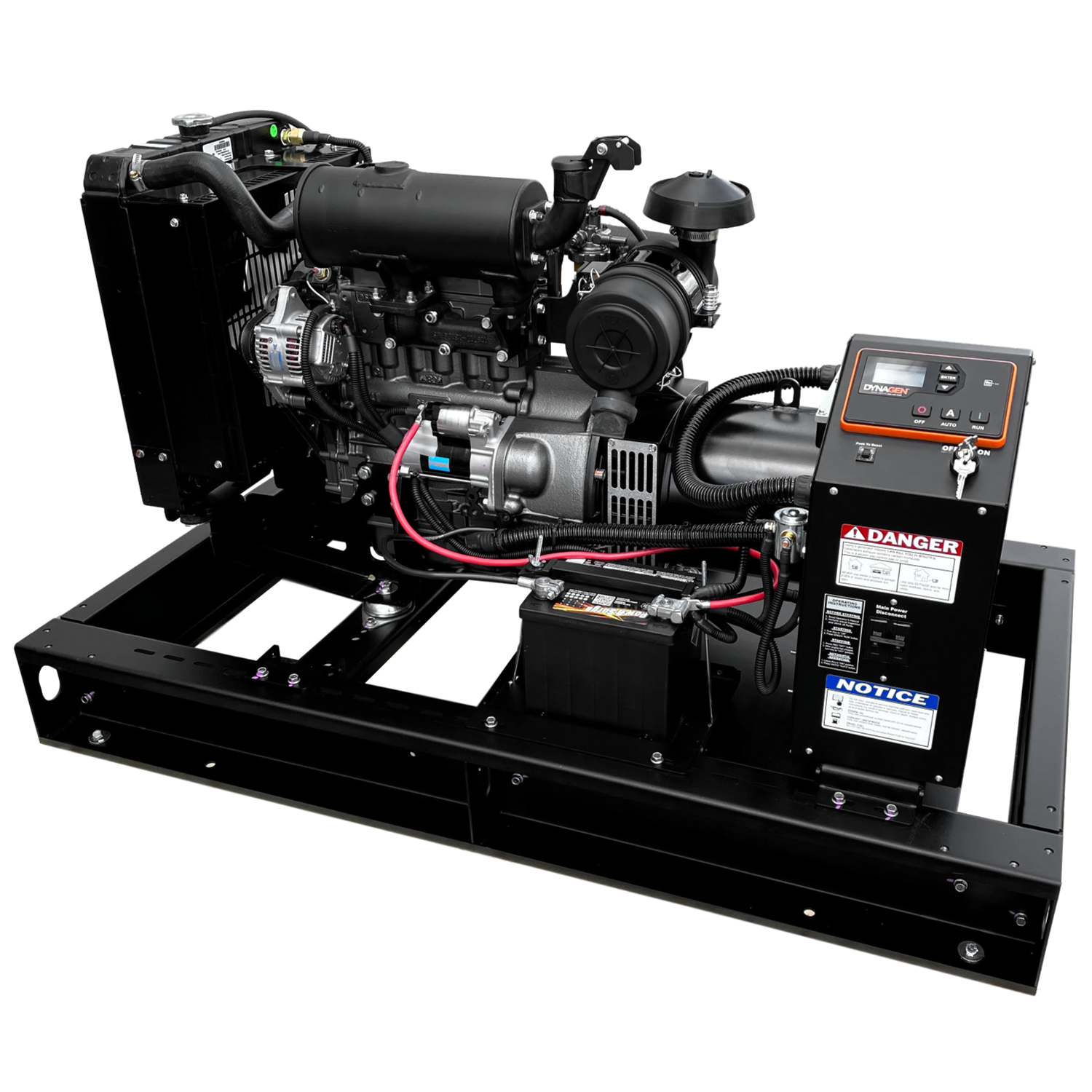

24 kW Yanmar Diesel Generator

From $15,192.54

24 kW Yanmar Diesel Generator

• 24 kW Emergency Standby
• Auto-start
• Exercise

Add to Cart
24 kW Yanmar Diesel Generator - Home
24 kW Yanmar Diesel Generator
From $15,192.54
Options & Accessories
Get Quote
Currency Switcher

Rating: 4.5 out of 5.
Shipping to USA and Canada
  • Insurance Included

24 kW Yanmar Diesel Generator

The 24 kW Yanmar Diesel Generator is perfect for  people who have a home where they want to power their fridge, freezer, stove, water pumps, fans and all their lights. This size unit is typically used in homes that don’t have/or need to use central air conditioning. It will allow you to power a few window air conditioners easily. There’s a reason the farming, transportation and construction industries have been leveraging the benefits offered by diesel generators for years.

Long Runtime Yanmar diesel-powered engines can work hard 24/7 for extended periods – up to 3 weeks if necessary – and still outlast any other type of engine for a fraction of the operating costs.

Aurora Generators - Weather enclosure exploded view

Weather Enclosures:

Aurora enclosures, installed at the factory, work with their corresponding generator sets to ensure optimal performance, security, and operator safety while protecting against harsh weather conditions. These enclosures are constructed using galvannealed steel and equipped with stainless steel fasteners for increased resistance to corrosion. Additionally, lift-off doors and access panels provide easy access for service and maintenance.

Aurora Generators - base frame and fuel tank exploded view

Construction

Aurora Generators are built tough. The steel frames and fuel tank are made of heavy gauge steel and power coated for corrosion resistance. Only stainless steel fasteners are used to assemble them.

Yanmar Diesel Engines

Yanmar Engine

Yanmar engines are suitable for use in challenging conditions and can run for extended periods, making them an excellent choice for producing power. They have an expected lifespan of more than 20,000 hours.

ECP28 Meccalte Alternator

Generator Head

Aurora Generators use Mecc Alte brushless and voltage-regulated alternators. They feature overload capability up to 300% for 20 seconds and maintain a voltage regulation of +/- 1%, ensuring stable and consistent power output.

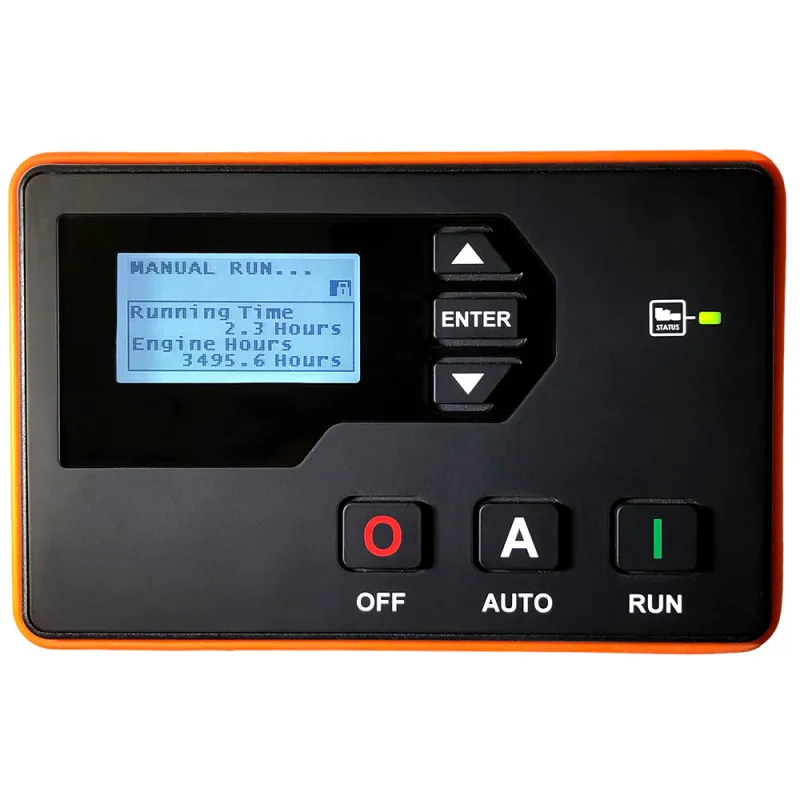

DynaGen TG410 TG350

Protection, Monitoring and Control

The 24 kW Yanmar Diesel Generator is equipped with a DynaGen TG350 controller. The controller is constructed to meet military specifications and is known for its ruggedness and ability to function under challenging environments.

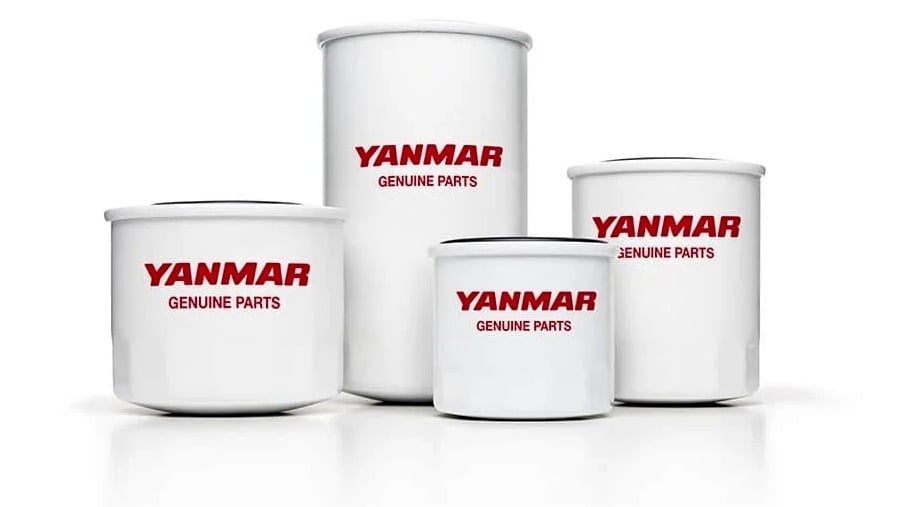

Yanmar Filters for Maintenance

Low Maintenance

Diesel generators have lower maintenance requirements compared to other types of generators. Specifically, the oil and filter only need to be changed every 500 hours of operation instead of every 100 hours for non-diesel generators. Aurora also carries a wide selection of parts and accessories for your generator.

Aurora Support Staff

Lifetime Customer Support

Enjoy free lifetime customer support with every purchase. No matter when you need assistance, Aurora’s dedicated customer support team will be there to help you.

5 Year Warranty on Aurora Generators

Flexible Warranty

The Aurora 15 kW Perkins Diesel Generator comes with a 5-year comprehensive factory warranty. Extended warranties are also available.

Fuel Nozzle

Cost Effective

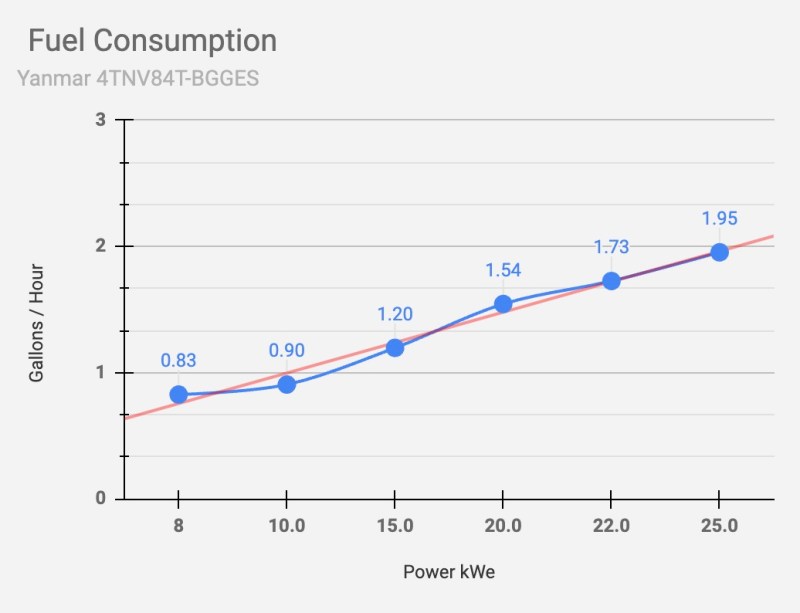

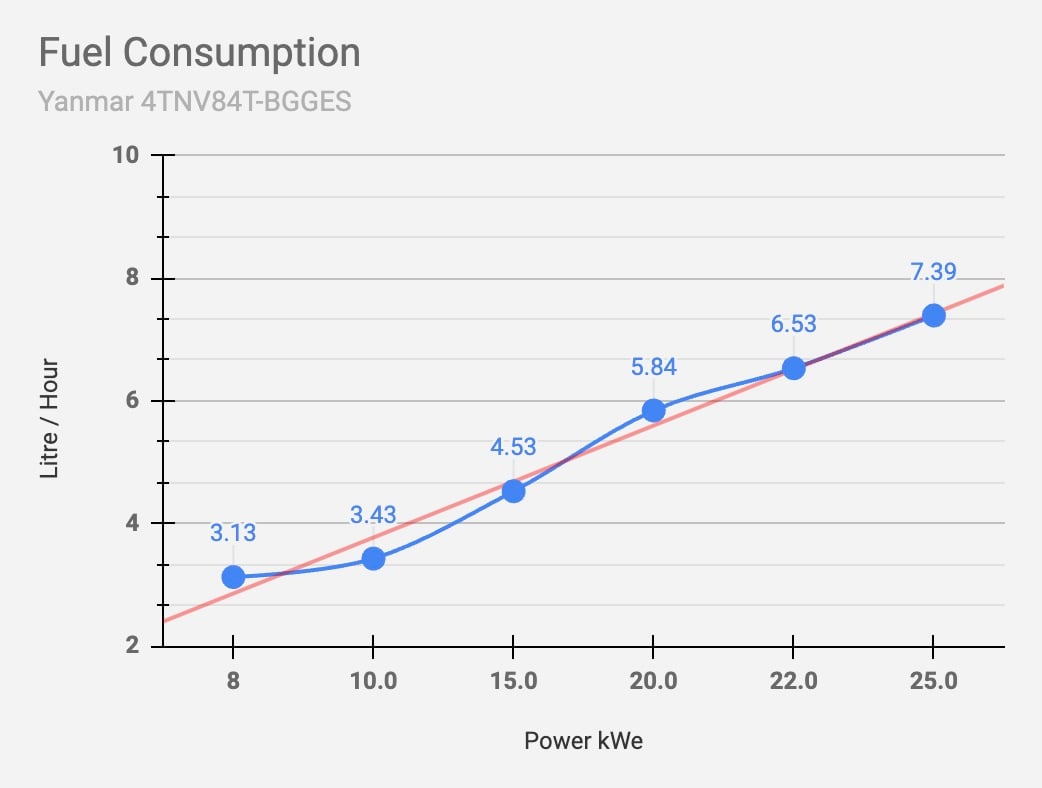

A diesel-powered generator can save over $100.00 in fuel per day when used to power a home, compared to natural gas, propane, or gasoline. This is because diesel fuel has a higher energy density than other fuels, meaning less fuel is required to generate the same amount of power. For example, a typical home would use 0.5 gallons of diesel an hour, while it would need 4-6 gallons of propane to generate the same amount of power.

Diesel Fuel Tanks

Fuel Tank Options

This generator comes equipped with an internal fuel tank. However, larger external fuel tanks can be purchased as an option for those requiring an extended, uninterrupted operation.

Additional information

Weather Enclosure

Include Weather Enclosure, No Weather Enclosure

Fuel Tank

No Fuel Tank, 12 Gallon Fuel Tank, 50 Gallon Fuel Tank (USA), 100 Gallon Fuel Tank (Canada), 100 Gallon Fuel Tank (USA)

Brand

Yanmar

Model

AGi22Y

Generator Type

Emergency Standby

Output Power

24 kW

Output Voltage

120/240 Volts

Output Current

200 Amp / 100 Amp

Yanmar Engine

4TNV84T-BGGES

Mecc Alte Alternator

NPE32 VL4 C

DynaGen Controller

TG350

Downloads

AGi24Y-E Downloads

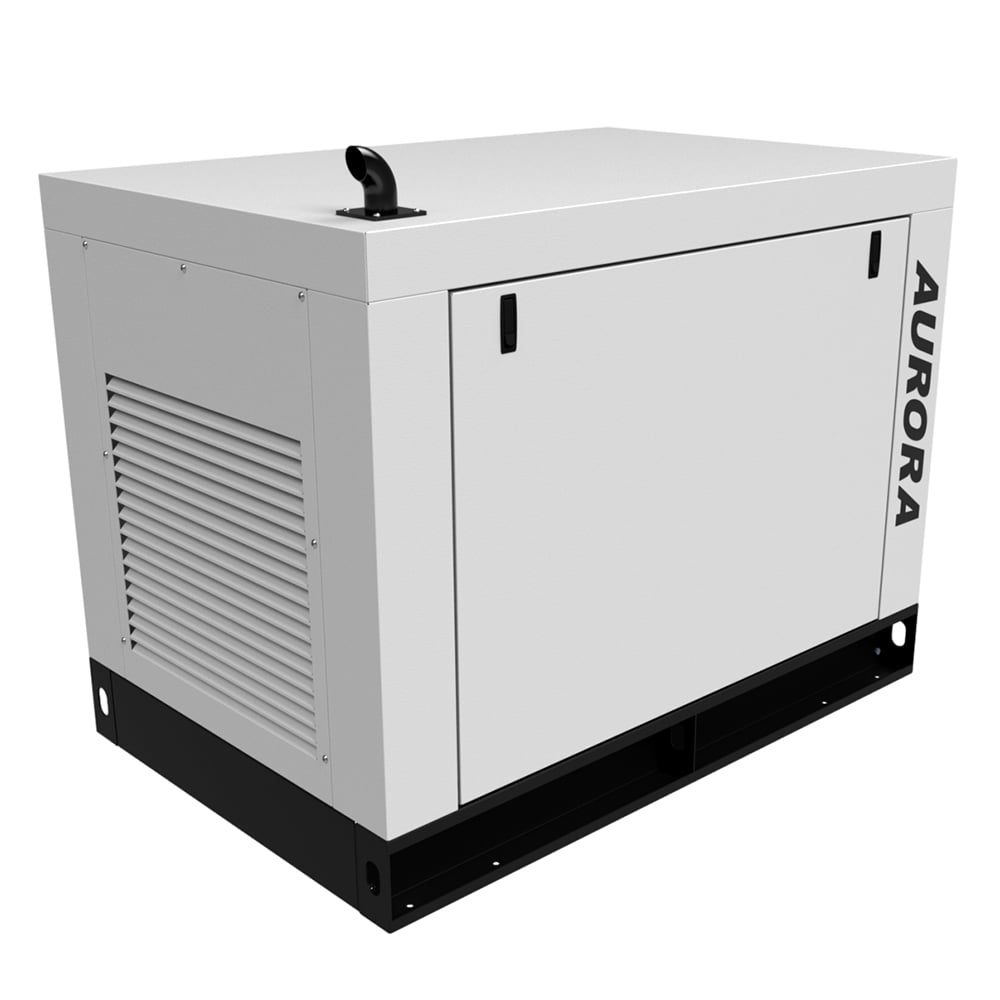

AGi24Y-E Specifications
AGi24Y-E 3D CAD PDF

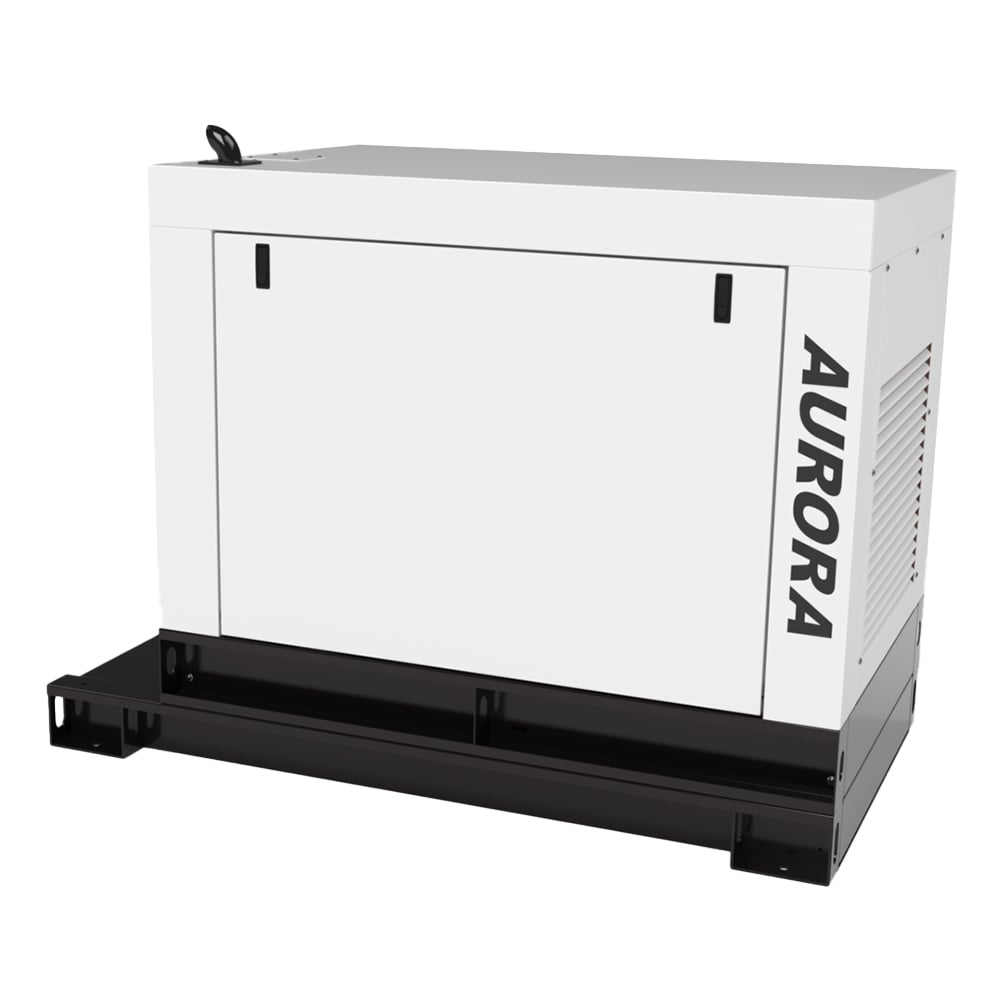

AGi24Y-E-50 3D CAD PDF (with 50 gallon fuel tank)

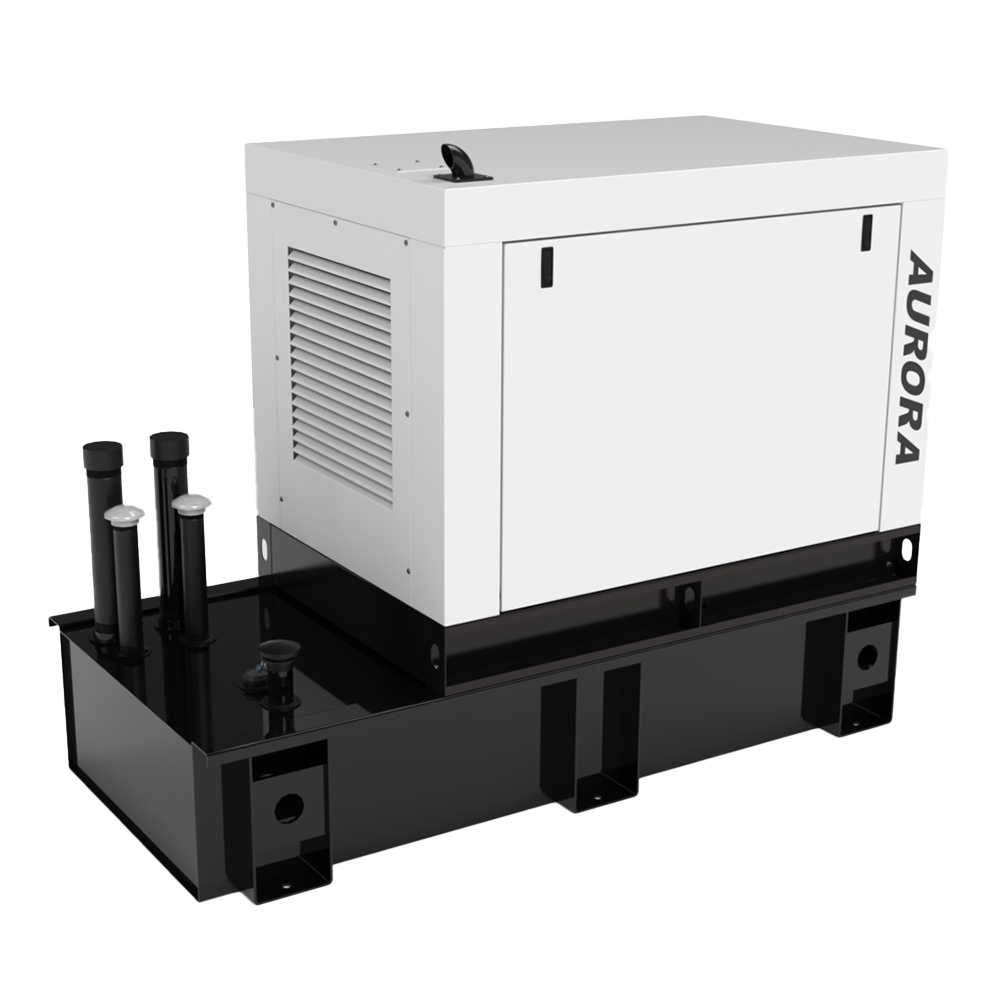

AGi24Y-E-100 3D CAD PDF (with 100 gallon fuel tank)

[table “” not found /]


Mecc Alte Alternator Downloads
NPE32 User Manual
ECP28 User Manual
DSR Voltage Regulator Manual

Generator Controller
DynaGen Controller TG350DynaGen Controller TG410
DynaGen TG350 SpecificationsDynaGen TG410 Specifications
DynaGen TG350 User ManualDynaGen TG410 User Manual
Dynagen AccessoriesDynagen Accessories
DynaGen Rapidcore Software User ManualDynaGen Rapidcore Software User Manual
Rapidcore Software DownloadRapidcore Software Download
DynaGen TG350 Firmware 1.94.03DynaGen TG410 Firmware 1.94.03
DynaGen J1939 Reference ManuelDynaGen J1939 Reference Manuel
DynaGen Wiring Harness GuideDynaGen Wiring Harness Guide
DynaGen Modbus Reference Manual
