Messenger BLE
INTEGRATED TELEMETRY SYSTEM
TWO-WAY COMMUNICATION ON REMOTE EQUIPMENT
Features
- The unit works with electronic engine controllers, ECU’s, devices on a CANbus, devices connected via Modbus RTU and direct connections to digital and analog signals
- Pre-configured to monitor and report standard CANbus engine messages
- Daily fuel rate, maximum and minimum values of all engine parameters are automatically reported
- Engine diagnostics are filtered to eliminate excessive reporting on intermittent faults • Supports multiple CANbus speeds, multiple devices on a single CANbus and reading and writing (for OEMs)
- Supports up to four digital inputs for detecting on/off conditions or used as pulsing inputs (e.g. flow meters)
- Three analog inputs for current or voltage inputs, reported as raw data or converted to engineering units
- Two output relays controlled manually or automatically based on analog values exceeding thresholds or digital inputs changing state
- Independent Modbus master and slave communication over two serial ports
- Supported Modbus functions include 16-bit and 32-bit versions of: register, coil, float and packed-digital reads and writes
- Backend reporting via UDP or TCP using proprietary protocol
- The Satellite modem option enables coverage in hard-to-reach areas around the globe

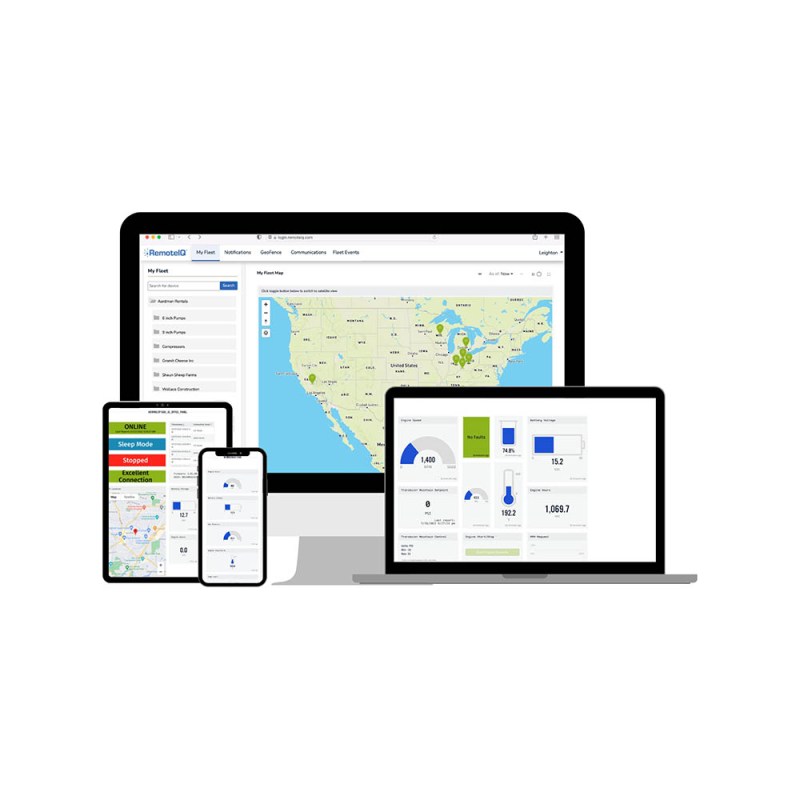

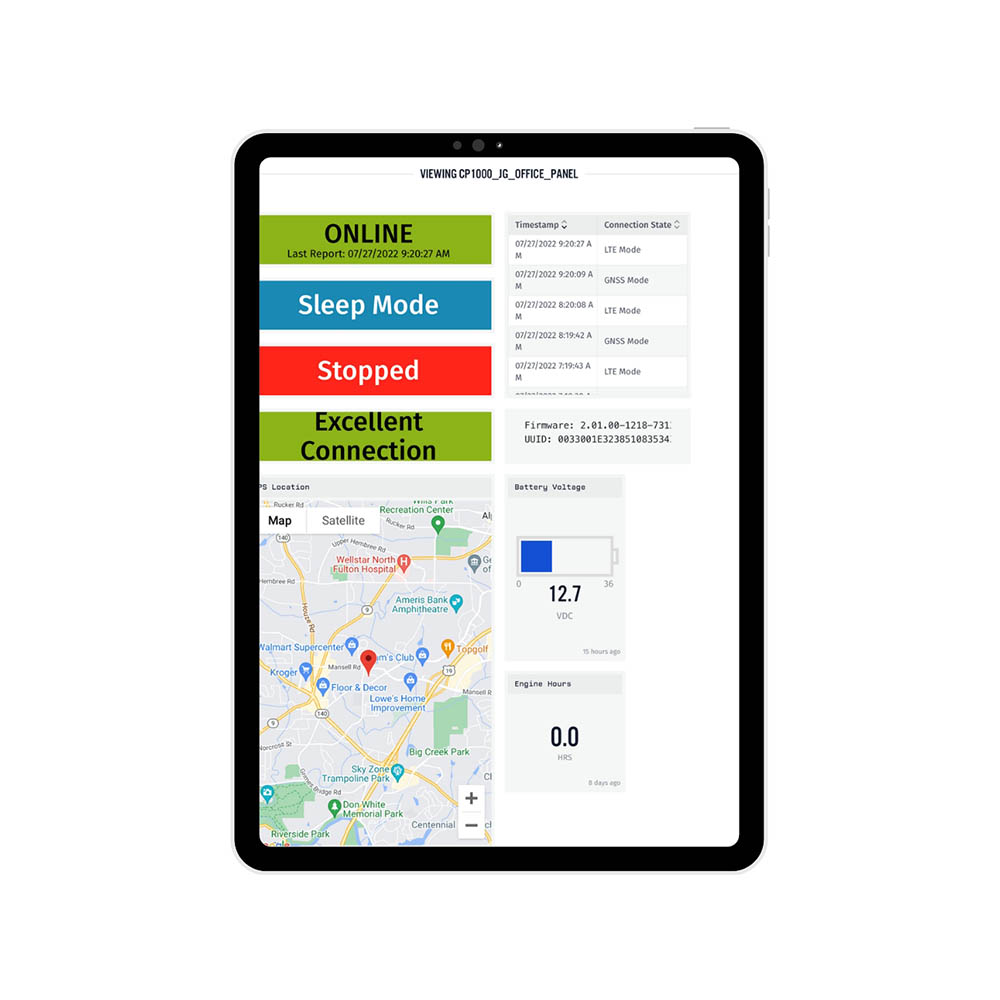

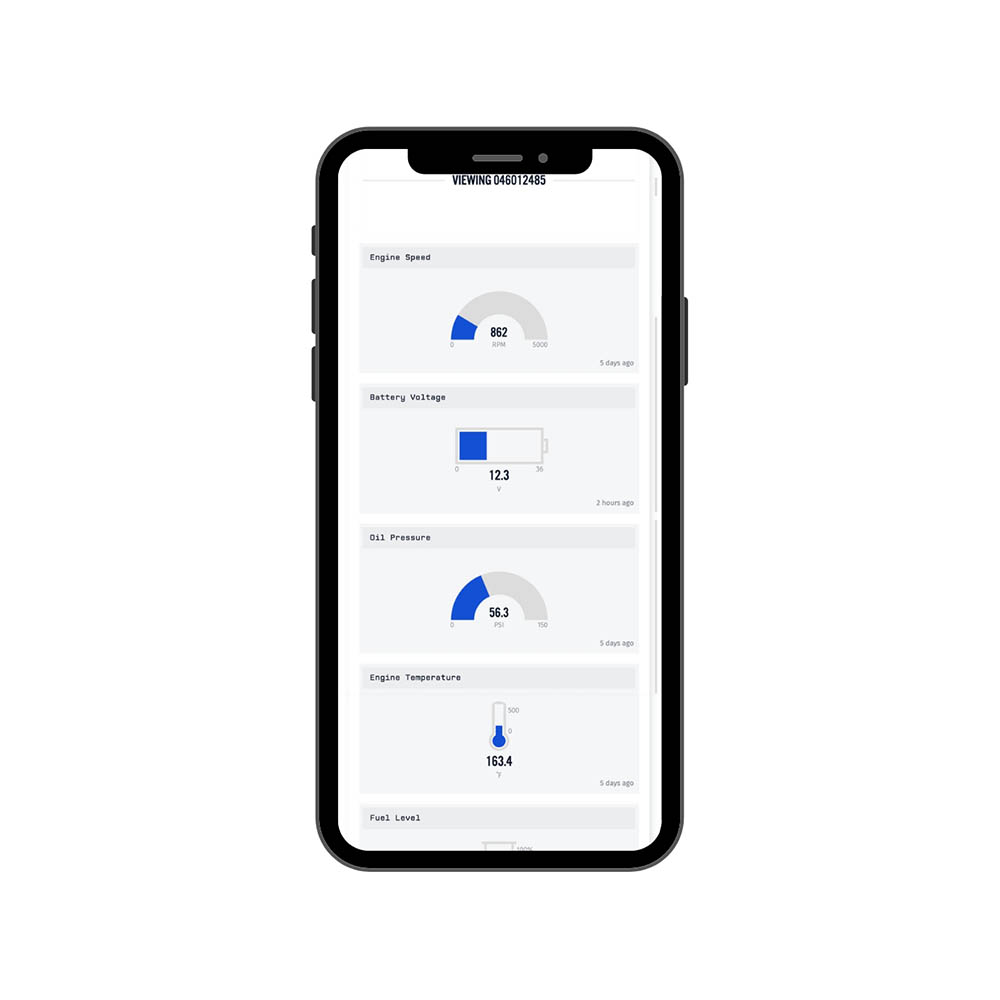

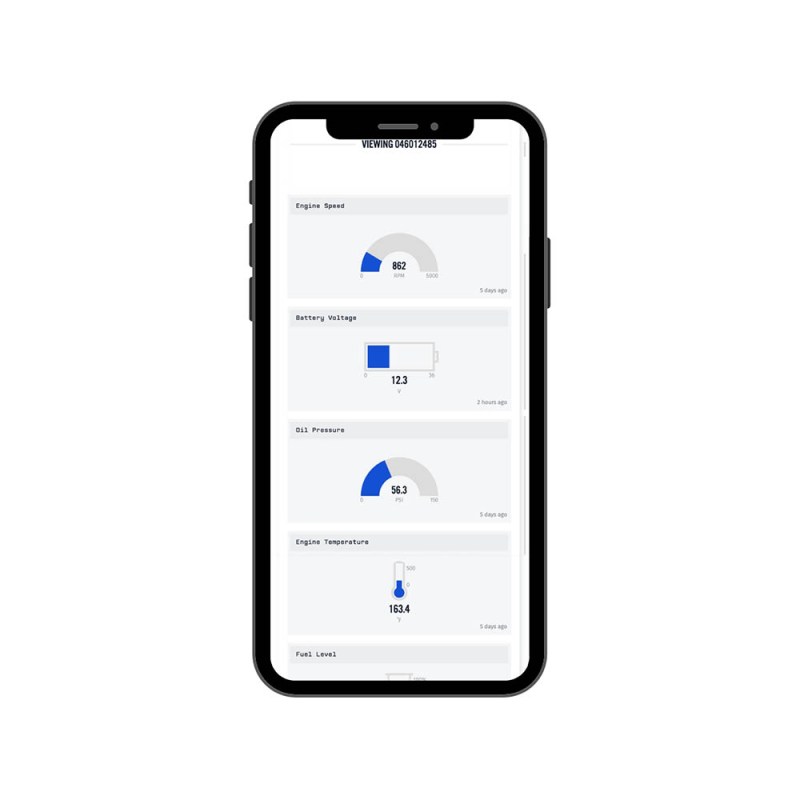

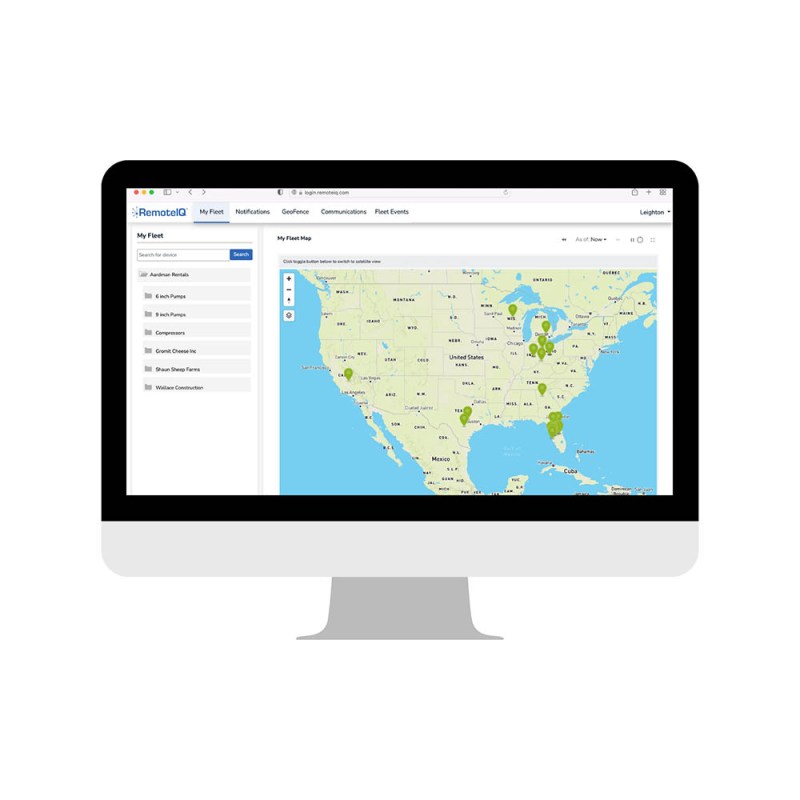

- Easily activate and link to your BLE with the RemoteIQ™ Messenger BLE app from any mobile device
Applications
- Diesel Engines
- Generators
- PLCs
- Start Controllers
TECHNICAL DATA AND SPECIFICATIONS
Non-CANbus Conditions
GPS coordinates for location General purpose or pulse closure-to-ground inputs Analog inputs for external sensors Geo-fencing
Pre-Configured
- Engine hours
- RPM
- Battery voltage
- Oil pressure, temp and level
- Fuel level
- Coolant level and temperature
- Odometer
- Throttle and accelerator position
- Air filter differential pressure
- Ambient conditions
- Diagnostic messages reported via DM1
- Fault conditions
- OEM-specific parameters
- Daily fuel usage and hours
- Trip fuel usage and hours
- Idle time-limit exceeded
- Max and Min on monitored conditions
- Hard acceleration and braking.
Cellular
North America: LET CATM1, CAT1 or Satellite
Worldwide: LTE CAT1 or Satellite
Serial Ports
2 RS485 PPP connection for connection to Internet for PCs or display devices
Support Modbus Slave and Master protocol
External modems via pass-thru
Support OEM-specific communication
General Purpose Inputs
- Up to 4 digital (closure to ground or powered) inputs
- 3 Analog inputs – voltage, ma
- 2 Relay outputs (1A @ 12 VDC)
Bluetooth
- Bluetooth Low Energy
- Bluetooth 5.0 compatible
Accelerometer
- 3-axis
Electrical
- Operating power: 6-36 VDC
- Sleep mode – less than 15 mA @ 12 VDC
- Monitoring mode – 40 mA @ 12 VDC LTE
- Transmit mode – 400 mA peak @ 12 VDC
Physical Characteristics
5.00″ x 4.63″ 2 8-pin M12 (1 male, 1 female) connectors for power and I/O Industrial temperature range -40°C to +85°C Watertight industrial enclosure
Power Management
Extreme low power mode for battery-powered applications Internal power for last-gasp reporting and power up through short brown outs
Geofencing
Automatically placed when stationary, radius-based or rectangular
Warranty
One-year limited warranty with Cattron.com
Certifications
FCC, IC, PTCRB and ATT approvals for end-user applications RoHS compliant
* Information provided on this datasheet by Cattron and/or its partners is to be used for reference purposes only. Cattron reserves the right to change specifications and product details on this datasheet without prior notice. Cattron™ and all associated logos or marks are trademarks of Cattron and/or its subsidiaries. All rights reserved.
