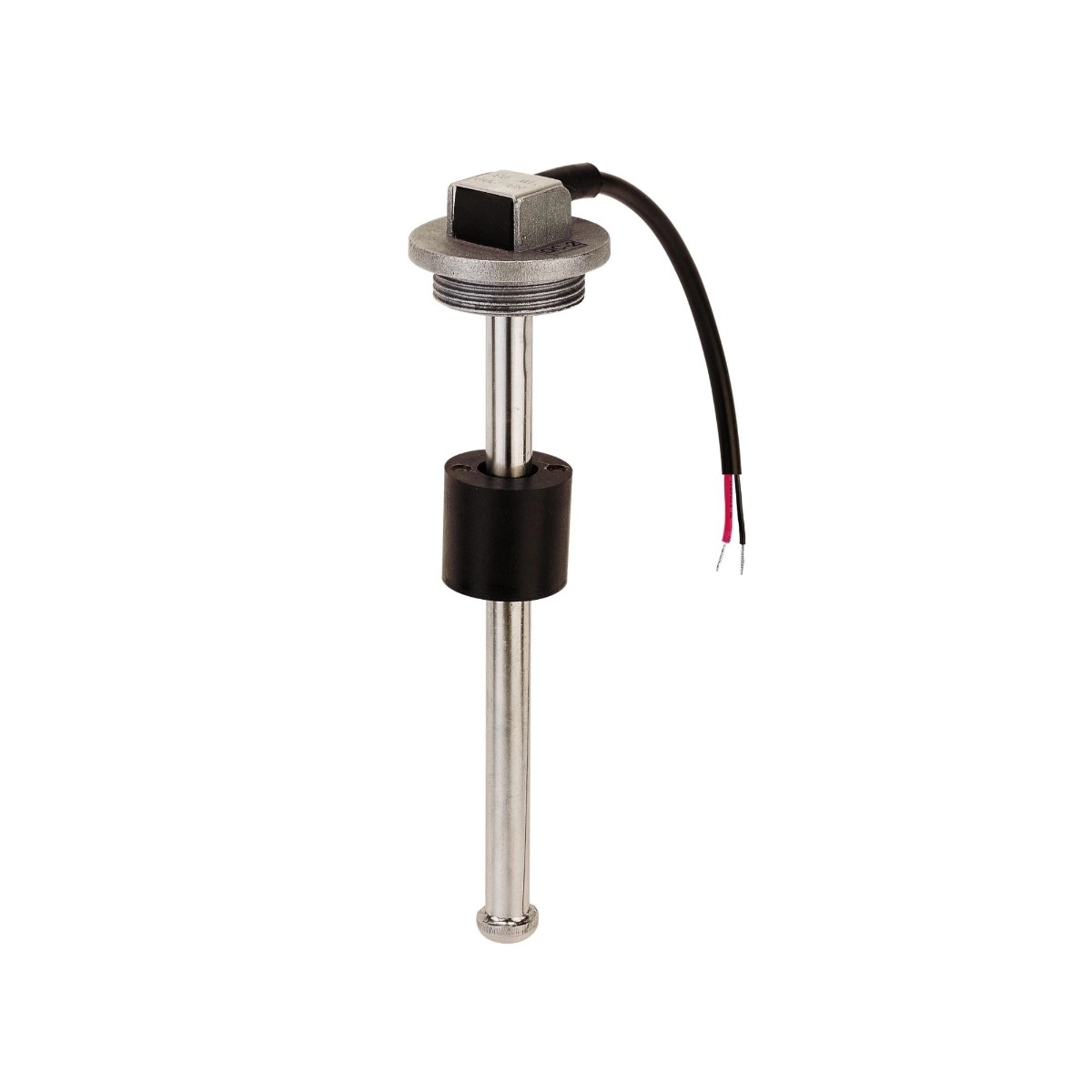

KUS 154046 | 1.5″ NPT, 240-33 ohms, 46″ Length Level Sensor

The electric liquid level sending units are widely used in marine, on-road, off-road, generator set, and industrial applications. The electric liquid level sending unit utilizes a reed switch and magnetic field technology. The advantage of the reed switch type level sender over the thick-film swing arm type level sender is the reed switch’s durability and reliability. Additionally, in reed switch level senders, the float is the only moving part, thereby minimizing potential mechanical failures.

Material:

• Body: SUS 316 Stainless Steel
• Float: NBR
• Cable: PVC

Mounting Method:

• 1.5″ NPT (National Pipe Thread)

Protection Rating:

• IP 65

Output Signal:

• American Standard 240-33 ohms (240 ohms at empty, 33 ohms at full)

Resolution:

• 21mm

Operation Temperature:

• -40°F ~ +185°F (-40°C ~ +85°C)

Operating Voltage:

• 12VDC or 24VDC system. The sender draws power through the signal wire

Rated Power Draw:

• 125 mW

Length:

• 46″
