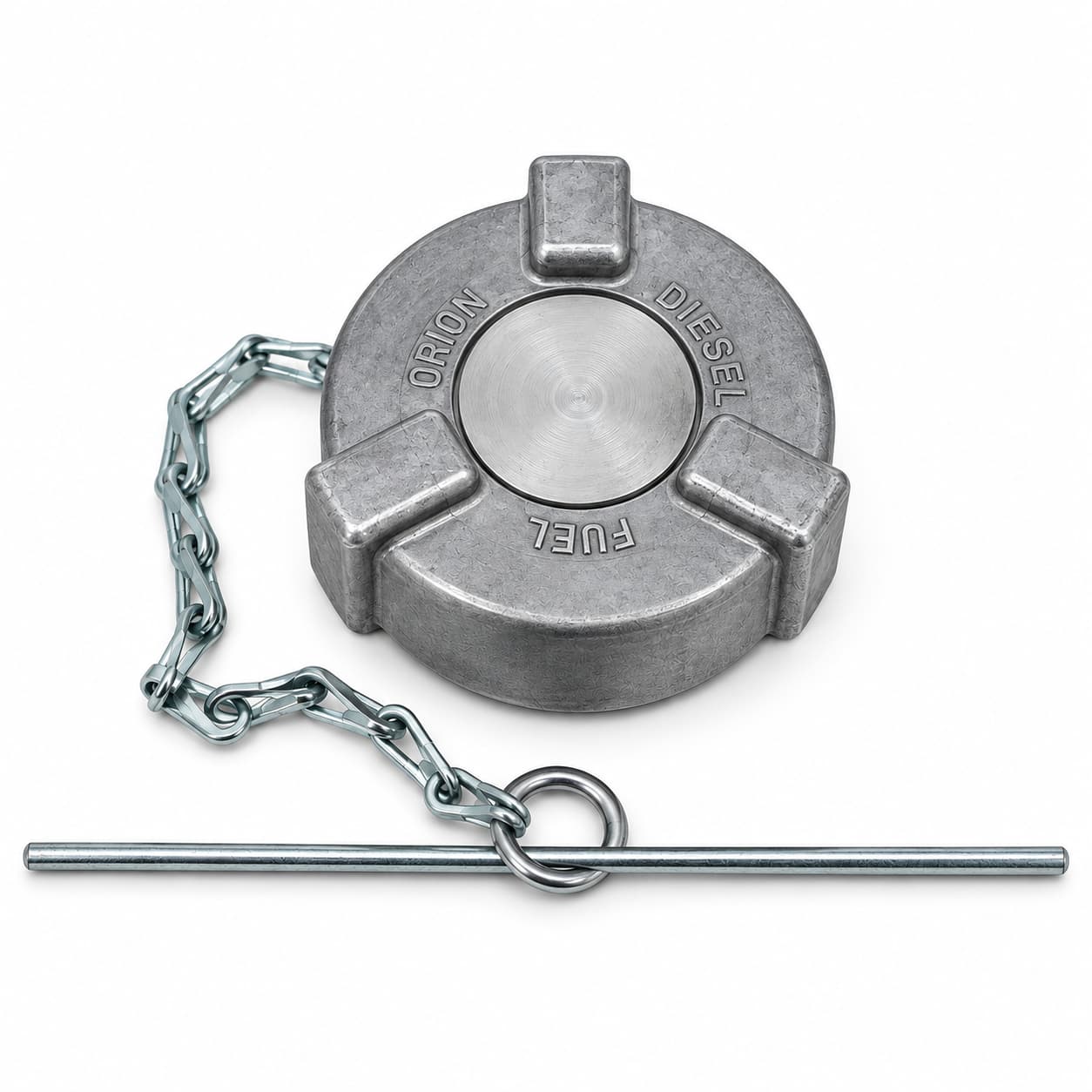

The 27-07-013 diesel fuel cap is a non-locking aluminum cap assembly for a matching 2-inch Schedule 40/80 filler neck with 11.5 NPSH threads. Its three grip lugs provide a handhold for removal, while the included chain and bail retain the cap at the tank.
Specifications
| Part number | 27-07-013 |
|---|---|
| Cap type | Non-locking, non-vented |
| Material | Aluminium |
| Thread | 2-inch, 11.5 NPSH; female threaded |
| Filler neck | 2-inch Schedule 40/80, with matching thread |
| Cap inside diameter | 2.25 inches (57.15 mm) |
| Thermal relief | 190°F (approximately 88°C) |
| Grip | Three lugs |
| Chain length | 8 inches (203.2 mm) |
| Bail length | 6.5 inches (165.1 mm) |
| Marking | DIESEL FUEL ONLY |

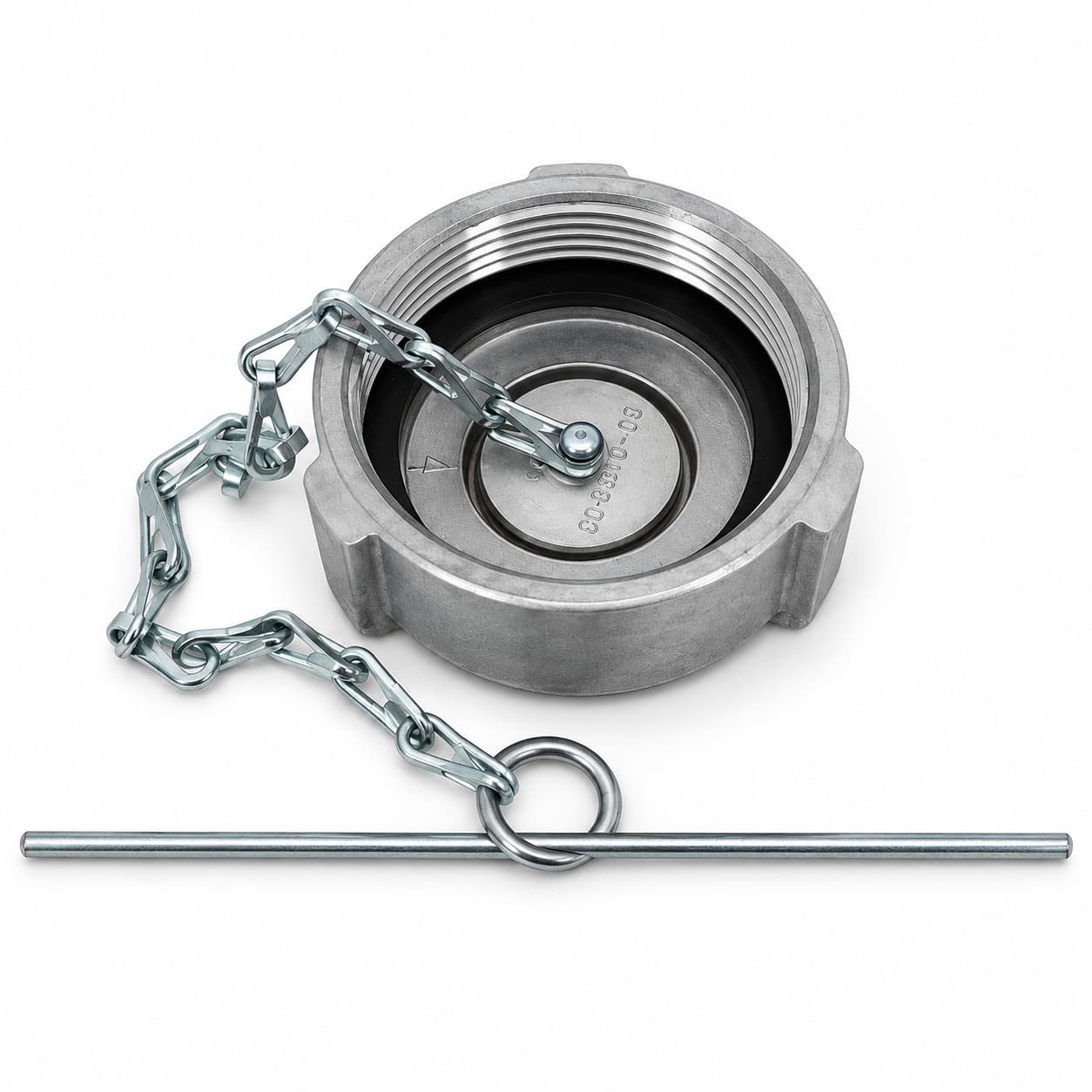

| Identifier under cap | 90-00998 |
Fitment and tank venting
The tank must have a separate functioning vent. Thermal relief does not replace normal tank venting. Verify the filler-neck dimensions and exact thread before ordering. A nominal 2-inch connection does not establish compatibility with a 2-inch NPT fitting. ACE lists this cap for aluminum diesel tanks in reefer trailer and International medium-duty truck applications. For generator tanks, confirm the filler neck and vent arrangement before selecting this cap.
Manufacturer-listed cross-references
- Carrier: 44-00046-10
- Thermo King: 11-7984
- International: 3548221C2
- Freightliner: TM 9000998
- Volvo: 3947845
- Tankcraft: 2302A121
- Aurora Generators
Cross-references are supplied by Aurora. Confirm the existing tank and cap before replacement.
Package contents
One non-locking fuel cap assembly with chain and bail. Filler neck and tank vent are not included.
