The DynaGen 200 Engine Controller is a versatile and robust device designed for manual and autostart operations, offering comprehensive control, monitoring, and protection for both electronically and mechanically governed engines. Here are the key features and specifications of the DynaGen 200 Engine Controller:
Key Features
- Rugged Design: IP67-rated for water and dust ingress protection, ensuring durability in harsh environments.
- Compliance: Meets Tier 4F and Euro Stage V emission standards.
- Diagnostics: Utilizes patented QR code diagnostics through RemoteIQ™ QR-Assist for easy troubleshooting.
- Display: Equipped with a 2.8” QVGA sunlight-viewable color display for clear visibility in various lighting conditions.
- Menu Access: Features multilevel PIN-based menu access for enhanced security.
- Configuration: Controller settings can be configured through intuitive display menus.
- Throttling: Advanced throttling capabilities with configurable increments and manual ramp rate control.
- Autoramp Profile: Offers a configurable seven-stage autoramp profile for engine startup.
- Software Customization: Customizer software allows users to create, modify, and save configuration files, which can be loaded onto the panel via USB.
Inputs and Outputs
- Inputs:
- Engine RPM:
- Tachometer, DC alternator, AC frequency, and magnetic pickup.
- Analog Inputs: Three inputs (one high impedance, one low impedance, one configurable for 4-20mA, 0-5V, variable resistance, or switch to ground).
- Digital Inputs: Three digital inputs switchable to VBAT, GND, open, or closed (tri-stating).
- Outputs:
Three Outputs: 1A high-side switched outputs.
Technical Data and Specifications
- Operating Voltage: 6-36 VDC.
- Standby Current: 60mA @ 12 VDC, 38mA @ 24 VDC.
- Surge & Dump Load: SAE J1113-11 compliant.
- Reverse Polarity Protection: Yes.
- Display: 2.8” QVGA color display.
- Weight: 0.55 lbs (0.45 kg).
- Dimensions: 4.0 in x 4.0 in x 2.0 in (10.6 x 10.6 x 5.08 cm).
- Protection: IP67-rated.
- Operating Temperature: -20° to +70° C (-4° to +158° F).
- Vibration and Shock: Meets SAE1455 and SAE J1455 standards for composite vibration profiles and swept sine on all three axes.
Communications
- CANbus: SAE J1939.
- Modbus: RS-485.
- USB: Yes.
Additional Options

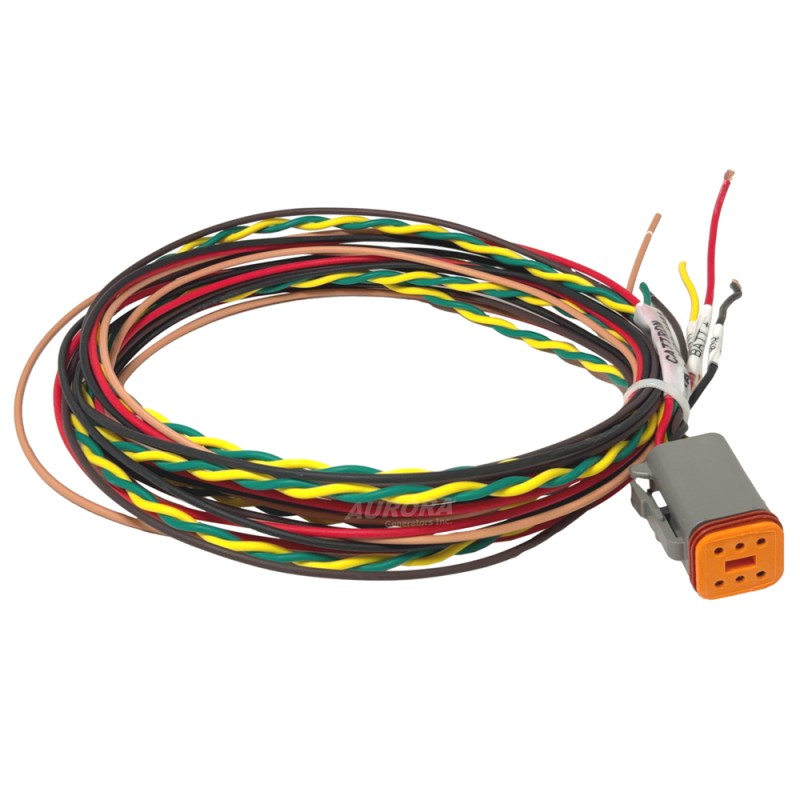

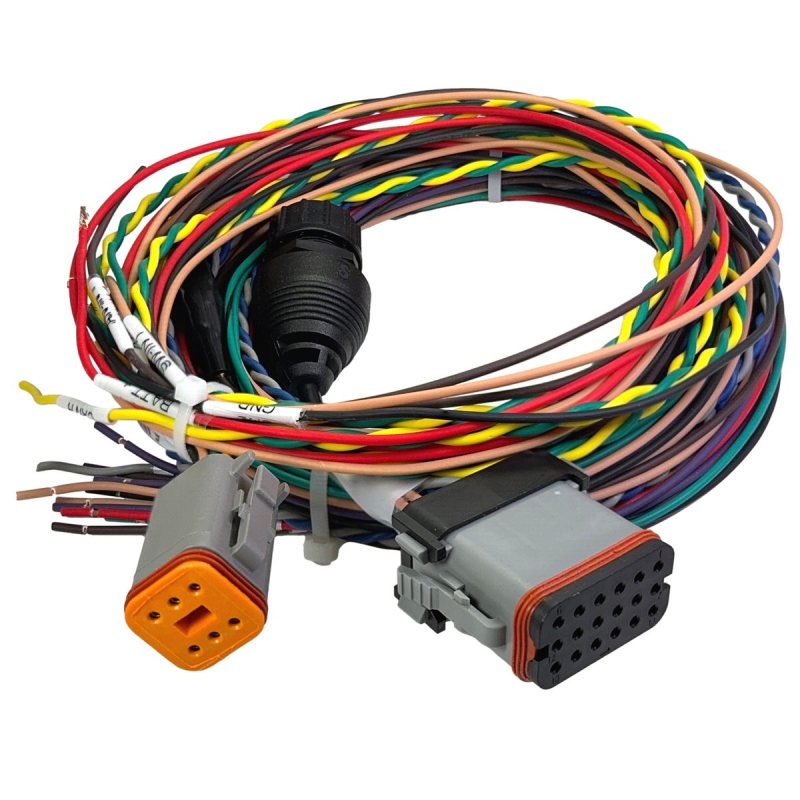

- The wiring harness are NOT included. You can make your own or purchase the optional harnesses from us at an additional cost.
