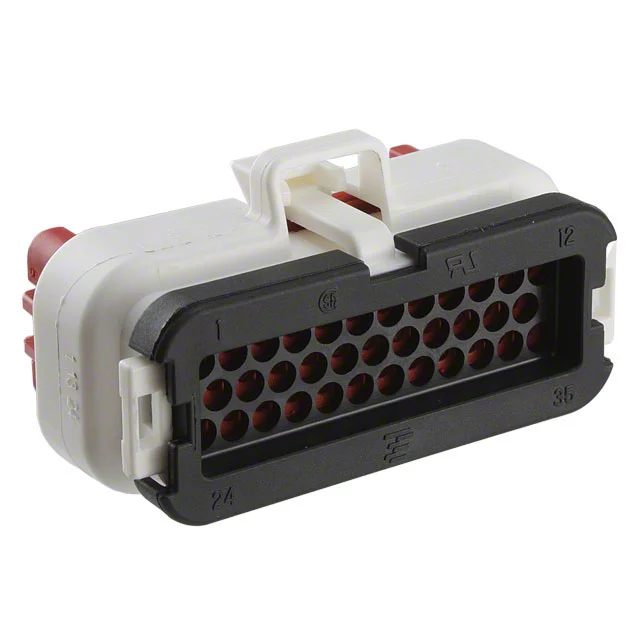

TE Connectivity AMPSEAL 35-Pin Connector Housing
The TE Connectivity 776164-2 is a 35-position AMPSEAL sealed plug housing for wire-to-board connections in generator controls, engine wiring harnesses, vehicles, and industrial equipment. It is suitable for building or repairing compatible harnesses used with DynaGen TG600 and PRO600 generator controllers.
The natural-colour housing uses Code B mechanical keying. Always confirm the mating header colour and keying before ordering because AMPSEAL housings with the same number of positions are not necessarily interchangeable.
Why use an AMPSEAL connector?
- Sealed construction for equipment exposed to water, dust, dirt, vibration, salt, and temperature changes
- 35 circuits in a compact three-row housing
- Integrated primary locking and terminal position assurance
- Mechanically keyed housing helps prevent incorrect mating
- Serviceable design with separately replaceable crimp contacts
- Designed for power-generation, transportation, construction, agricultural, marine, and industrial applications
Specifications
| Manufacturer | TE Connectivity |
|---|---|
| Product family | AMPSEAL |
| Manufacturer part number | 776164-2 |
| Connector type | Sealed plug housing |
| Connector system | Wire-to-board |
| Positions | 35 |
| Rows | 3 |
| Contact type | 1.3 mm female socket, sold separately |
| Contact termination | Crimp |
| Compatible wire range | 16 to 20 AWG with the contacts identified in the TE product drawing |
| Contact spacing | 4 mm / 0.157 in |
| Operating voltage | 250 VAC |
| Maximum contact current | Up to 17 A with compatible gold-plated contacts; up to 8 A with compatible tin-plated contacts |
| Housing colour | Natural |
| Keying | Code B |
| Mounting | Free-hanging, in-line |
| Cable exit | 180 degrees |
| Housing material | UL 94V-0-rated PBT |
| Seal material | Silicone rubber |
| Environmental rating | IP67/IP69K capable when correctly assembled with the required mating components and backshell |
| Operating temperature | -40°C to 125°C with compatible gold contacts; tin-contact systems are rated to 105°C |
| Dimensions | 63.4 × 33.6 × 34.6 mm / 2.496 × 1.323 × 1.362 in |
Contacts and accessories
This product is the plug housing assembly. Crimp contacts are not included. Aurora offers the compatible TE Connectivity 770520-1 tin-plated socket for 16 to 20 AWG wire separately.
Depending on the installation, you may also require a correctly keyed mating header, backshell, cavity sealing plugs, connector position assurance accessory, and the proper AMPSEAL crimping and extraction tools.
Important compatibility information
- Confirm that the mating header uses the matching natural-colour, Code B keying.
- Select contacts for the conductor size, insulation diameter, current, and operating temperature.
- Install sealing plugs in unused cavities.
- Follow the TE Connectivity application specification and use approved tooling.
- Confirm compatibility with your controller or wiring documentation before purchase.
