Mahle | 48 Vdc | 175 Amp | 8.4 kW Alternator

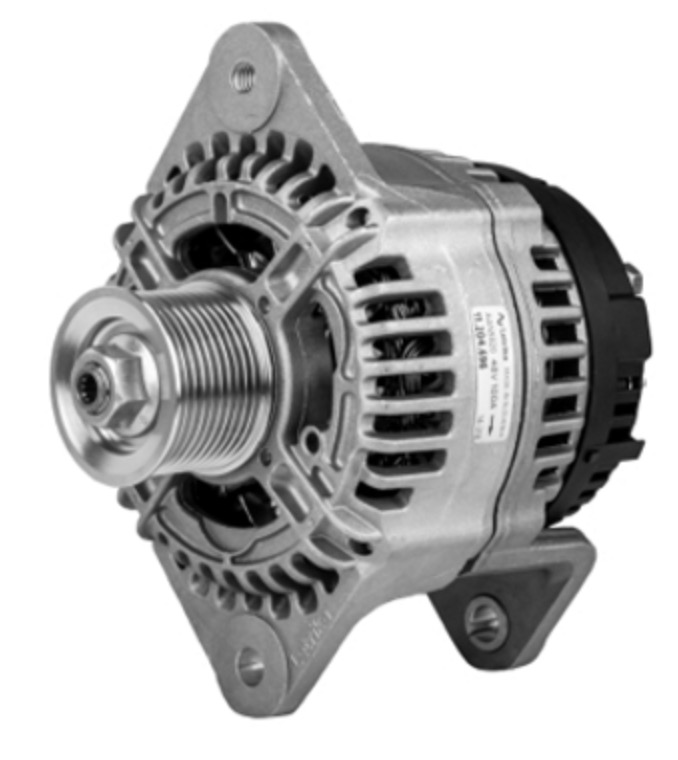

The Mahle MG976 56V DC Alternator is a high-output, compact charging solution engineered for demanding off-grid applications. With a 150 A current rating and 56 V fixed output, it delivers up to 8.4 kW of DC power. If used for charging lithium or lead-acid battery banks in marine, RV, truck, and remote power systems keep in mind, it it has a fixed output voltage that is not adjustable.

Key specifications include:

• Voltage: 56 V DC (fixed regulator)
• Current: 150 A
• Power Output: 8,400 W
• Minimum RPM: 3,000–6,000
• Pulley: 10-rib V-belt, 60 mm diameter
• Mounting: 101 mm bore spacing, 13 mm bolt holes
• Rotation: Clockwise
• Weight: 8.6 kg

This alternator features a sealed, dustproof construction and is commonly used in Aurora DC generator systems and other industrial applications. It is cross-referenced with part numbers IA9493, AAN8217, and 11.205.385.

Please confirm compatibility with your system’s specifications or documentation before purchase.
This part may fit other applications not listed here.
