Mahle | 48 Vdc | 100 Amp | 4.8 kW Alternator
Original price was: $1,233.50.$1,094.10Current price is: $1,094.10.
ECP28 Alternator | 3 Phase
From $2,372.12
ECP28 Alternator
From $2,372.12
- Dedicated Winding – 4 Lead
- Single or Three Phase Options
- 1800 RPM
- Class H Insulation
- CSA/UL
- Brushless
- AVR
This C-Type alternator is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
Additional information
| Weight | 215 kg |
|---|---|
| Dimensions | 24 × 24 × 24 cm |
| Type | Single Bearing, Two Bearing |
| Size | 6 kW, 8.5 kW, 10.5 kW, 12.5 kW, 15 kW, 17 kW, 22 kW, 25 kW |
| Voltage | Single Phase 120/240 Volts, 3 Phase 120/208 Volts, 3 Phase 277/480 Volts, 3 Phase 347/600 Volts |

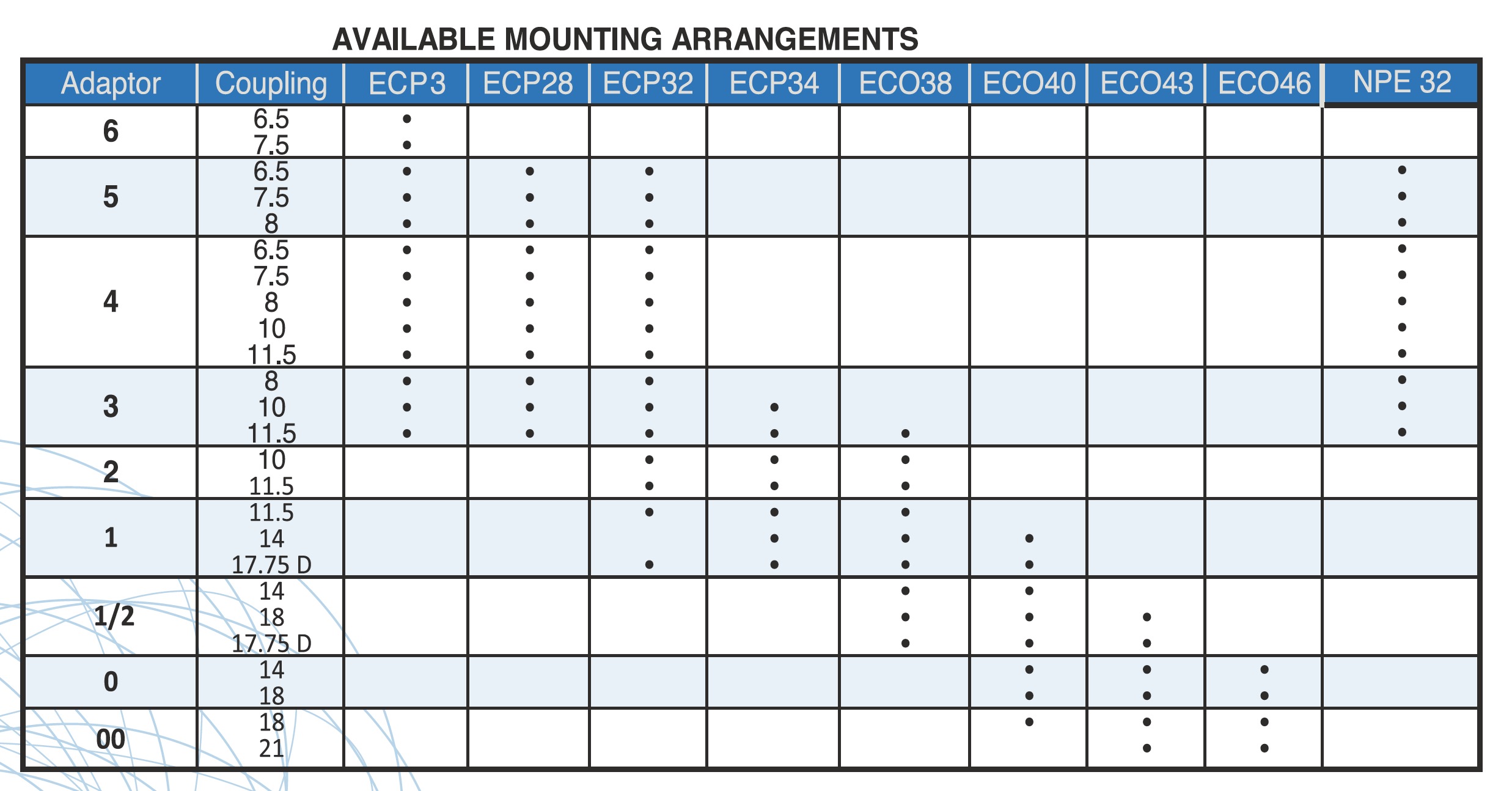

| Bell Housing | N/A, SAE2, SAE3, SAE4, SAE5 |
| Flywheel Size | N/A, SAE6.5, SAE7.5, SAE8, SAE10, SAE11.5 |
| Brand | Mecc Alte |
