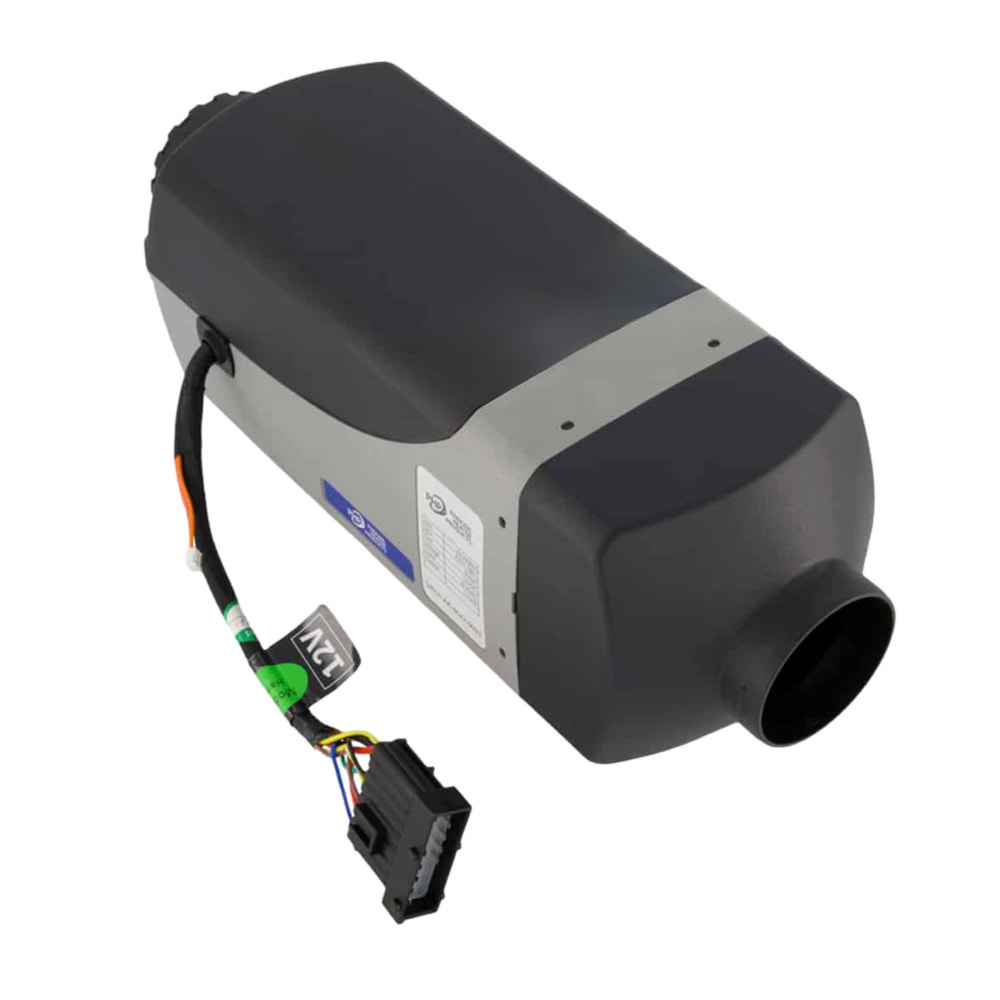

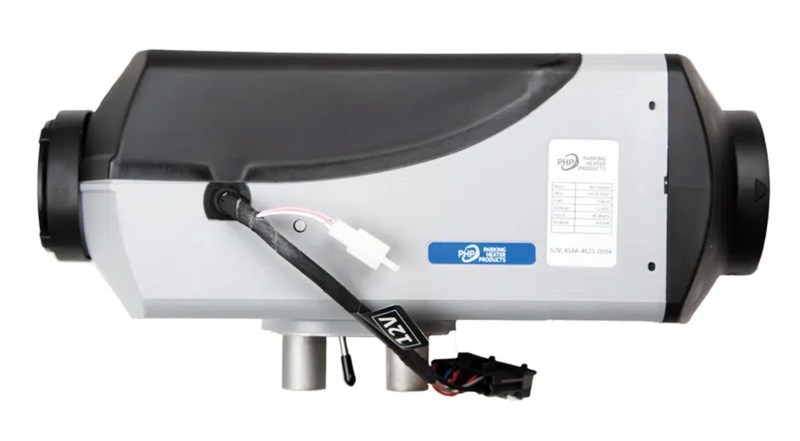

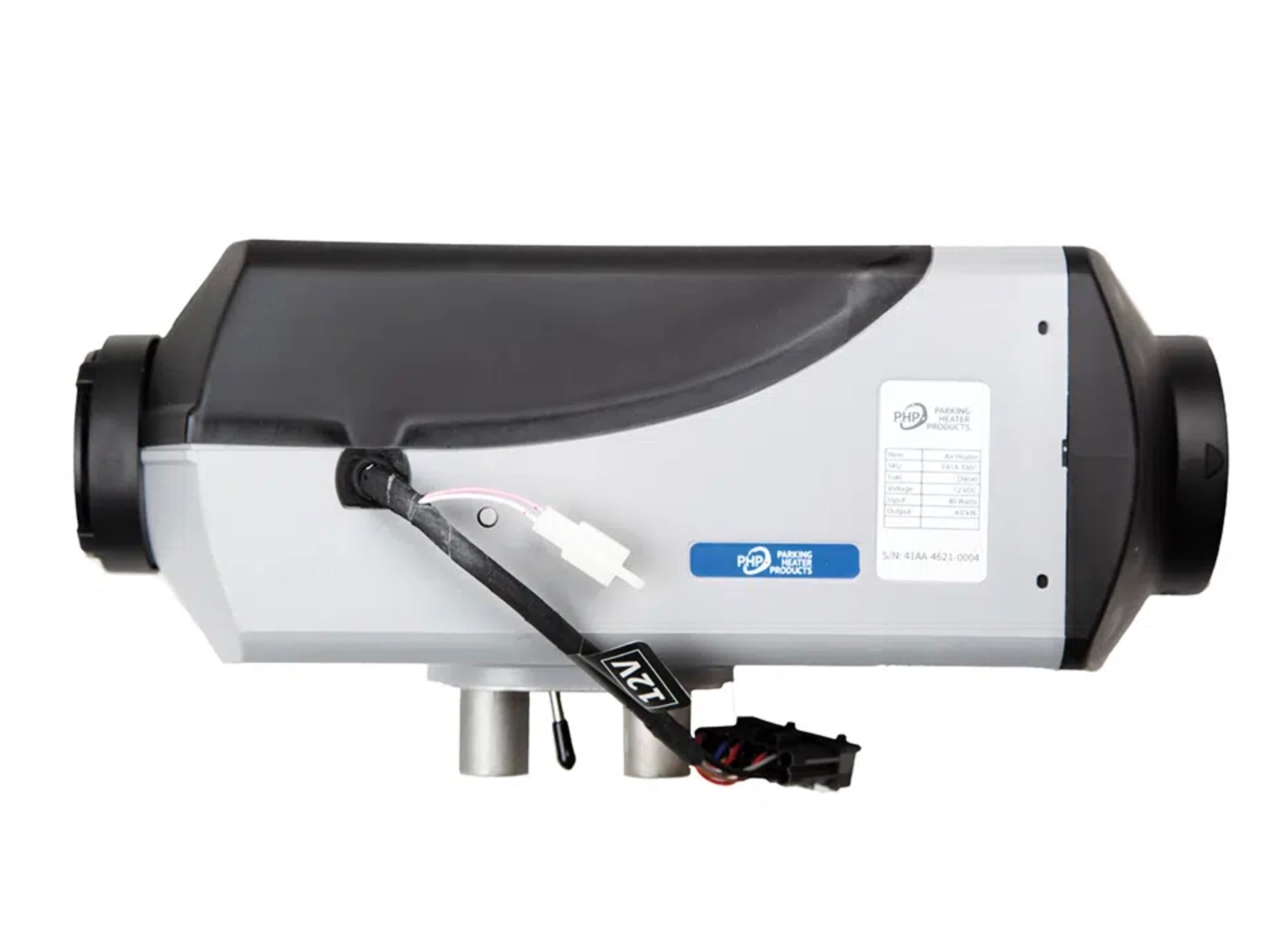

PH41A-A 4kW 12V diesel heater – UL-listed, Canadian-made cabin and genset heater for rigs, RVs & Aurora Generators enclosures. Ships USA & Canada.
| Heater Specifications | ||||
|---|---|---|---|---|
| Heating Mode | Super | High | Medium | Low |
| Heating Capacity KW (BTU) | 4.6 (15,695) | 3.5 (11,942) | 2.5 (8,530) | 1.4 (4,777) |
| FueL Consumption l/h (US Gallon) | 0.53 (0.14) | 0.41 (0.11) | 0.29 (0.08) | 0.18 (0.05) |
| Air Flow m3/min (CFM) | 2.46 (87) | 2.01 (71) | 1.47 (52) | 0.99 (35) |
| Power Consumption Watt | 40 | 33 | 25 | 12 |
| Start-up Power – Watt | ≤ 100 | ≤ 100 | ≤ 100 | ≤ 100 |
| Fuel Type | Diesel | |||
| Nominal Voltage | 12 | |||
| Lower Voltage Limit | 9 Volt over 20 seconds | |||
| Upper Voltage Limit | 16.0 Volts over 20 seconds | |||
| Overheat Protection | 115º C (239º F) | |||
| Allowed Ambient Temperature | -40º C to 76º C (-40º F to 168º F) | |||
| Weight | 4.45 kg (10 lbs) | |||
| Overall Dimensions | Length 373 mm (14.65”) Width 141 mm (5.55”) Height 150 mm (5.91”) |
|||
| *Specifications are subject to change | ||||
