From $1,532.76

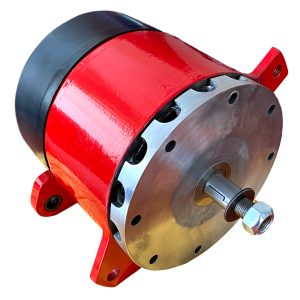

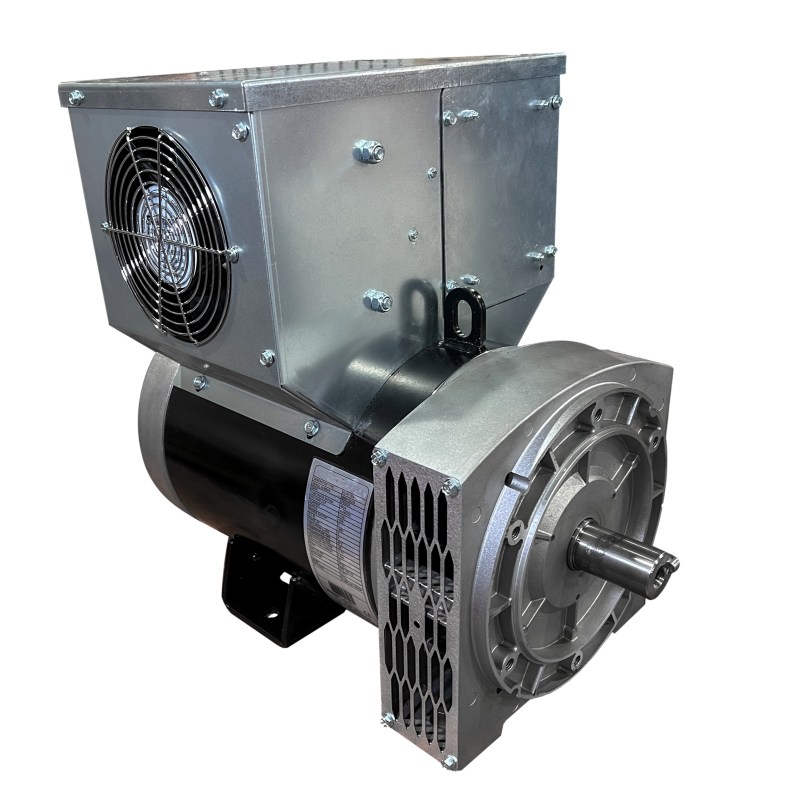

DC Generator / Alternator Head
If you need to charge batteries, take an off-grid system off-line or power 48-volt equipment, this alternator generator is for you! It is an industrial brushless alternator with a built-in adjustable current limiter available in a two-bearing or SAE 5/6.5 flywheel bell housing combination.
This 48 Volt DC Alternator is the same alternator/generator used by Aurora in our own DC and DC Inverter Hybrid Generators
| Weight | 143.3 kg |
|---|---|
| Dimensions | 57 × 12 × 8 cm |
| Connection Type | Single Bearing with SAE6.5 Flywheel and SAE5 Bell Housing, Two Bearing |
| Voltage | 12 Volts DC, 24 Volts DC, 48 Volts DC |
| Brand | Mecc Alte |
| Alternator Specifications | |
|---|---|
| Generator Type | AL3A 1S/4 |
| Power Rating | 6 kW |
| Voltage Output | 20-32 Vdc 45-58 Vdc |
| Current | 250 Amps @ 24 Vdc 125 Amps @ 48 Vdc |
| Ripple | < 3% |
| Power Factor | 1 |
| RPM | 1800 |
| Insulation Class | H |
| Enclosure | IP 23 |
| Weight | 65 Kg | 143.3 |
| Current Limiter | Included |
