Why Choose a 24 VDC Diesel Generator for Battery Charging
A 24 VDC diesel generator charges your battery bank directly, rather than producing AC power and converting it back to DC through a charger or rectifier. This approach eliminates conversion losses and allows the engine to operate at a healthier load level while charging batteries.
Traditional AC generators often run lightly loaded while a charger does the work. Running a diesel engine at low load for long periods can lead to carbon buildup and reduced efficiency. A direct DC generator solves this by allowing the charging current to be adjusted so the engine operates within an efficient load range.
Direct DC charging is widely used in telecom, off-grid power systems, and hybrid solar installations where batteries store energy and the generator runs only when charging is required. The result is shorter generator runtime, lower fuel consumption, and fewer components compared to systems that rely on external rectifiers or large battery chargers.
Key Benifits
- Higher overall charging efficiency
- Improved diesel engine loading during battery charging
- Reduced runtime for the same stored energy
- Fewer components compared to AC generator and rectifier systems
- Suitable for telecom, off-grid, and hybrid solar battery systems
How does this generator charge batteries?
This 48 VDC diesel generator is designed to charge battery banks directly using a regulated DC output. Instead of producing AC power and relying on a separate charger or rectifier, the generator supplies DC charging current straight to the batteries. This reduces conversion losses and gives you better control over how the engine is loaded during charging.
- Constant-current charging: Set the charge current limit to match battery acceptance and keep the engine in a healthy load range.
- Adjustable voltage: Output voltage can be set to suit the battery bank and charging profile requirements.
- Low ripple DC output: Clean regulated output helps support lithium, AGM, GEL, and telecom battery applications.
- Auto-start integration: Two-wire start allows the generator to work with battery inverter and energy system controls.
- Efficient charging cycles: Run the generator only when battery charging is needed, then shut it down once charging is complete.
In a hybrid power system, the generator starts when battery voltage or state of charge reaches a defined threshold. It then charges the battery bank at a controlled current and voltage until the charging target is reached. This makes it a practical solution for off-grid sites, telecom systems, remote equipment, and backup power systems built around 48 volt battery storage.
Typical Applications for a 24 VDC Diesel Generator

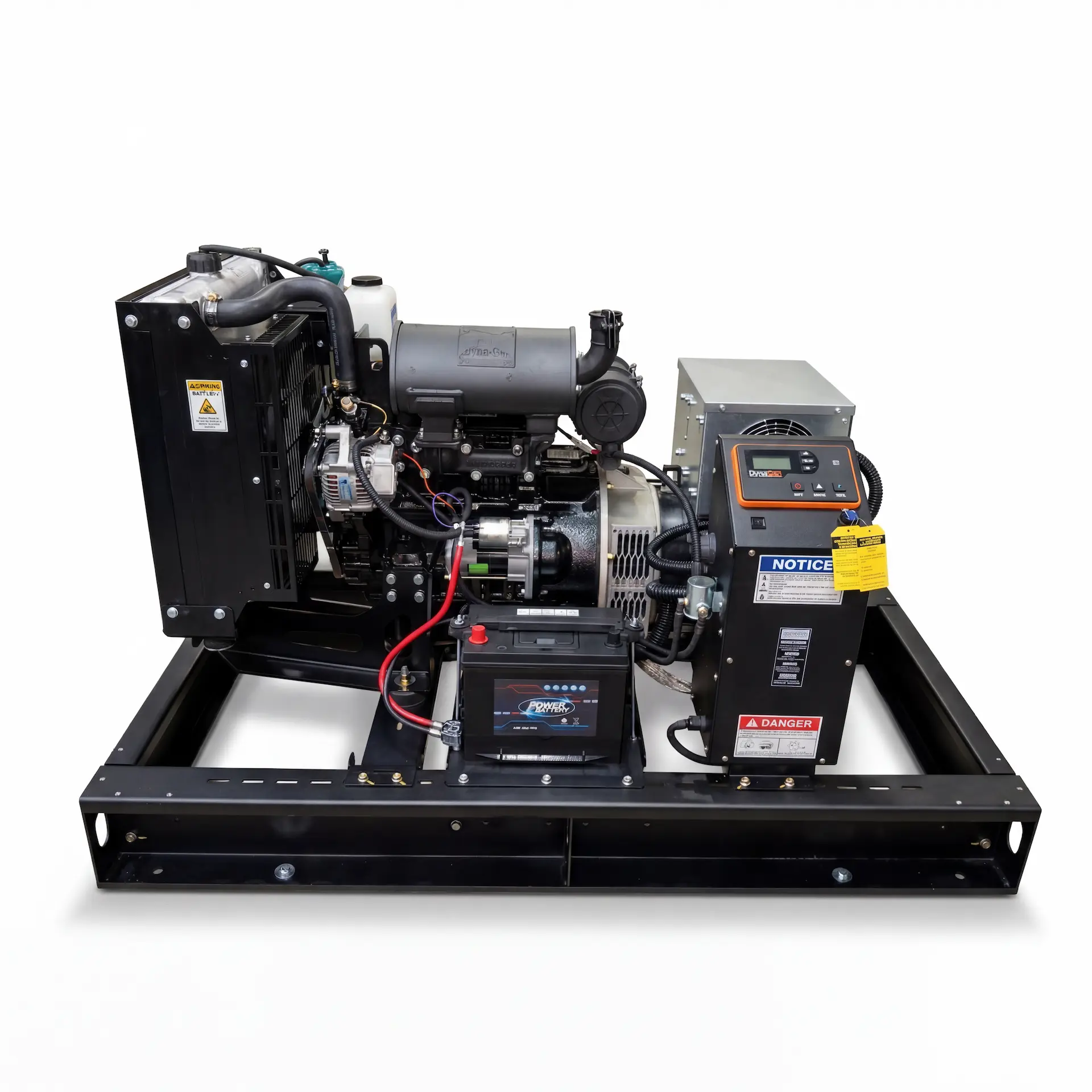

This Yanmar-powered 24 VDC diesel generator is well-suited for battery-based power systems that need reliable charging without the added losses of AC chargers or rectifiers. It is commonly used where batteries provide the main stored energy, and the generator runs only when charging is required.
- Telecom systems: Charge 24-volt battery banks used in communication shelters, tower sites, and remote network equipment.
- Off-grid power systems: Support homes, cabins, and remote buildings that rely on inverters and battery storage systems.
- Hybrid solar power systems: Provide backup charging when solar production is low or the battery’s state of charge drops.
- Remote monitoring and control equipment: Supply dependable charging power for instrumentation, security, and industrial control sites.
- Backup battery systems: Recharge critical DC battery banks during extended outages or when renewable energy conditions are poor.
Because the generator delivers a regulated 24 Vdc output directly to the battery bank, it is a practical choice for systems that need efficient diesel charging, automatic start capability, and dependable operation in remote or unattended installations.
| Topic | 48 VDC Diesel Generator | AC Generator + Rectifier/Charger |
|---|---|---|
| Energy path | Engine → DC alternator → Batteries | Engine → AC alternator → Rectifier/Charger → Batteries |
| Conversion loss | Minimal conversion | ~4% loss at the rectifier (typical 96% efficiency) |
| Engine loading | Set DC current to keep engine in an efficient band | Often runs light while charger limits power → poor fuel use |
| Reliability | Fewer devices in the charging chain | More parts. If rectifier fails, charging stops |
| Integration | Two-wire auto-start with Victron, Schneider, OutBack | Same auto-start possible, but still depends on rectifier |
| Use case fit | Off-grid, telecom cabinets, energy storage | Sites that already need large AC loads running continuously |
Instrumentation, Protection & Control
Operating this generator is simple, as it utilizes a DynaGen TG350 controller. Additionally, it offers advanced instrumentation, protection, and control.
• Displays voltage, speed, frequency, battery voltage, fuel level, oil, coolant temperature, etc.
• 150 events log
• Auto-start (two-wire compatible)
• Exercise
• Password protection
• End user programmable
