13 kW Commercial Diesel Generator

$19,149.00

  • American-made Perkins engine
  • Can be used for part or full-time power
  • 5 Year warranty
  • Tough UV-treated steel weather enclosure
  • 500-hour service interval
  • Uses 0.5 gallons an hour of diesel on average
Get Quote
Currency Switcher

Rating: 4.5 out of 5.
Shipping to USA and Canada
  • Insurance Included

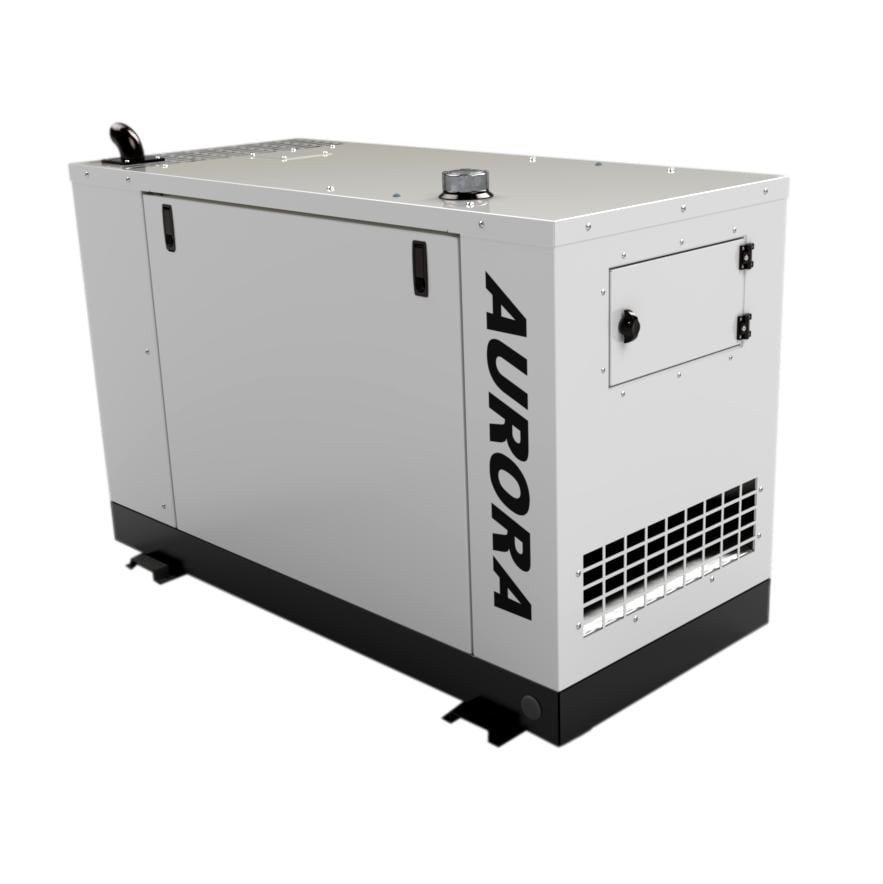

13 kW Commercial Industrial Diesel Generator

Introducing the 13 kW Commercial Industrial Generator from Aurora Generators – the compact and powerful solution for all your industrial needs. Designed with noise reduction in mind, this generator operates at a low 65 decibels, making it ideal for use in densely populated areas. With a built-in fuel tank, this generator is ready to go when you are, and its advanced generator controller with auto-start and exercise features ensures that your power supply is always available when you need it.

Powered by a reliable Perkins diesel engine, the 10 kW Commercial Generator is built to last, and its easy-to-service design with removable doors makes maintenance a breeze. The generator also features lockable doors for added security, making it an ideal choice for full-time use. And, for added protection against corrosion, the generator is available with a stainless steel enclosure.

Whether you need a generator for a construction site, industrial facility, or backup power for your business, the 13 kW Commercial Generator from Aurora Generators is the ideal choice. Contact us today to learn more about this powerful and compact solution for all your industrial power needs.

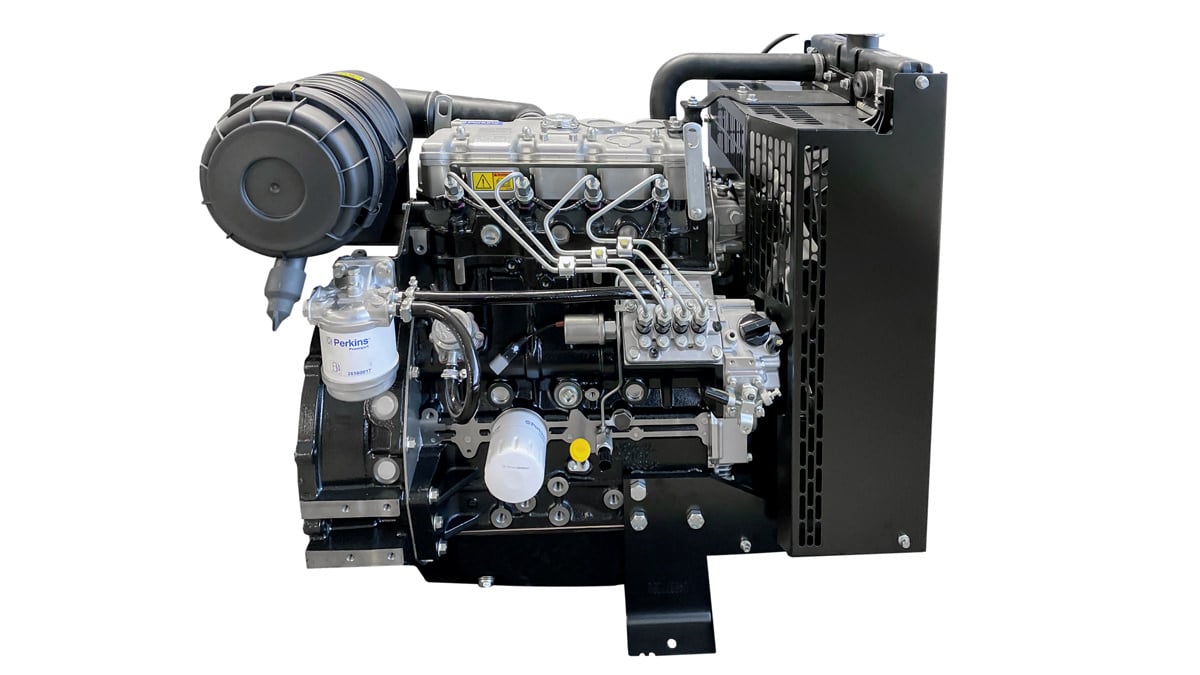

403F-11G Perkins Diesel Engine used on Aurora 10 kW Perkins Diesel Generator

Powered by Perkins

Perkins engines are suitable for use in challenging conditions and can run for extended periods, making them an excellent choice for producing power. They have an expected lifespan of more than 20,000 hours. As a subsidiary of Caterpillar, a company known and respected worldwide, Perkins offers superior warranties and product support.

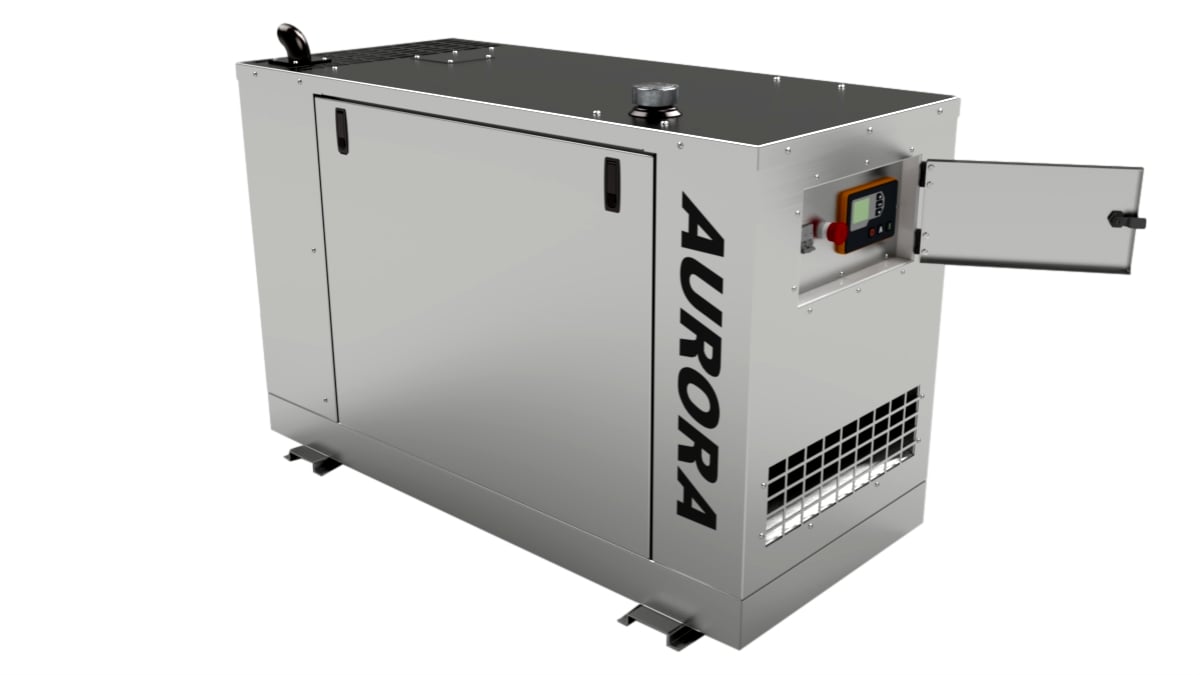

Stainless Steel 10 kW Commercial Industrial Diesel Generator

Weather Enclosure

Aurora enclosures, installed at the factory, work with their corresponding generator sets to ensure optimal performance, security, and operator safety while protecting against harsh weather conditions. These enclosures are constructed using galvannealed steel and equipped with stainless steel fasteners for increased resistance to corrosion. Additionally, lift-off doors and access panels provide easy access for service and maintenance. This generator is also available with a stainless steel enclosure as shown.

Aurora Support Staff

Lifetime Customer Support

Aurora Generators already offers the peace of mind that comes with the manufacturer’s warranty, covering all of the significant components used in the generators. However, the company goes above and beyond by offering free lifetime customer support. No matter when you need assistance, Aurora’s dedicated customer support team will be there to help you. With free lifetime customer support, Aurora Generators ensures that customers have the ongoing support they need, even after the sale, to ensure that the product runs smoothly and effectively.

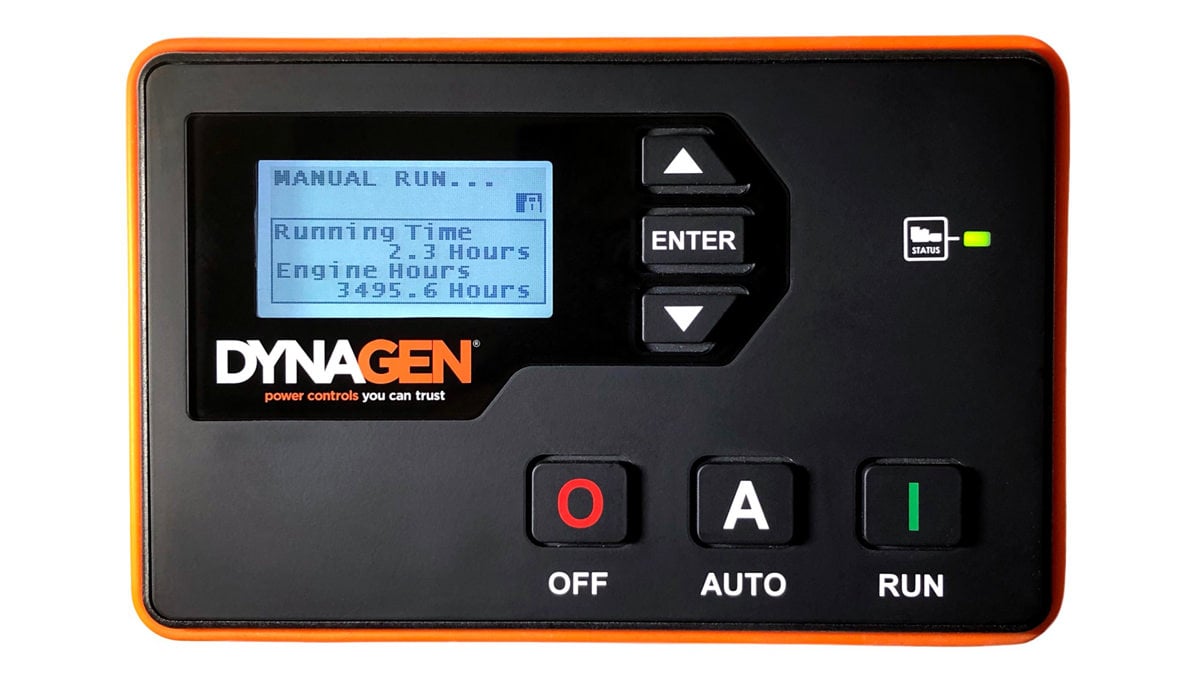

DynaGen TG410 TG350

Generator Protection, Monitoring and Control.

This 13 kW Perkins Diesel Generator is equipped with a DynaGen controller, which offers comprehensive protection and control for its instrumentation. Known for its ruggedness and ability to function under challenging environments, the DynaGen controller is constructed to meet military specifications and is considered the most durable industry.

10 kw Perkins Diesel Generator spare filters

Low Maintenance

Diesel generators have lower maintenance requirements compared to other types of generators. Specifically, the oil and filter only need to be changed every 500 hours of operation instead of every 100 hours for non-diesel generators. Aurora also carries a wide selection of parts and accessories for your generator.

10 kw Perkins Diesel Generator 5 Year Warranty

Flexible Warranty

Diesel-powered generators seldom have any restrictions and can be used non-stop if needed. However, the warranty for natural gas, propane, and gasoline-powered generators usually only covers emergency standby use.

Aurora Generator Clean Save Power

Clean Safe Power

Our generator alternator, also known as a generator head, is a brushless and voltage-regulated device capable of producing clean and safe power for all your electrical needs. It features overload capability up to 300% for 20 seconds and maintains a voltage regulation of +/- 1%, ensuring stable and consistent power output. This generator alternator is suitable for various applications requiring reliable and safe power sources.

Fuel Nozzle

Cost Effective

A diesel-powered generator can save over $100.00 in fuel per day when used to power a home, compared to natural gas, propane, or gasoline. This is because diesel fuel has a higher energy density than other fuels, meaning less fuel is required to generate the same amount of power. For example, a typical home would use 0.5 gallons of diesel, while it would need 4-6 gallons of propane to generate the same amount of power.

Simple Generator Remote Start / Stop for Aurora Generators

Generator Remote Control

Aurora Generators partners with Shelly, a smart relay and sensor that operates over WiFi. With Shelly, you can monitor your generator for any issues and remotely start or stop it using an internet connection, making it an affordable and convenient way to add monitoring and control without incurring any data or subscription charges.

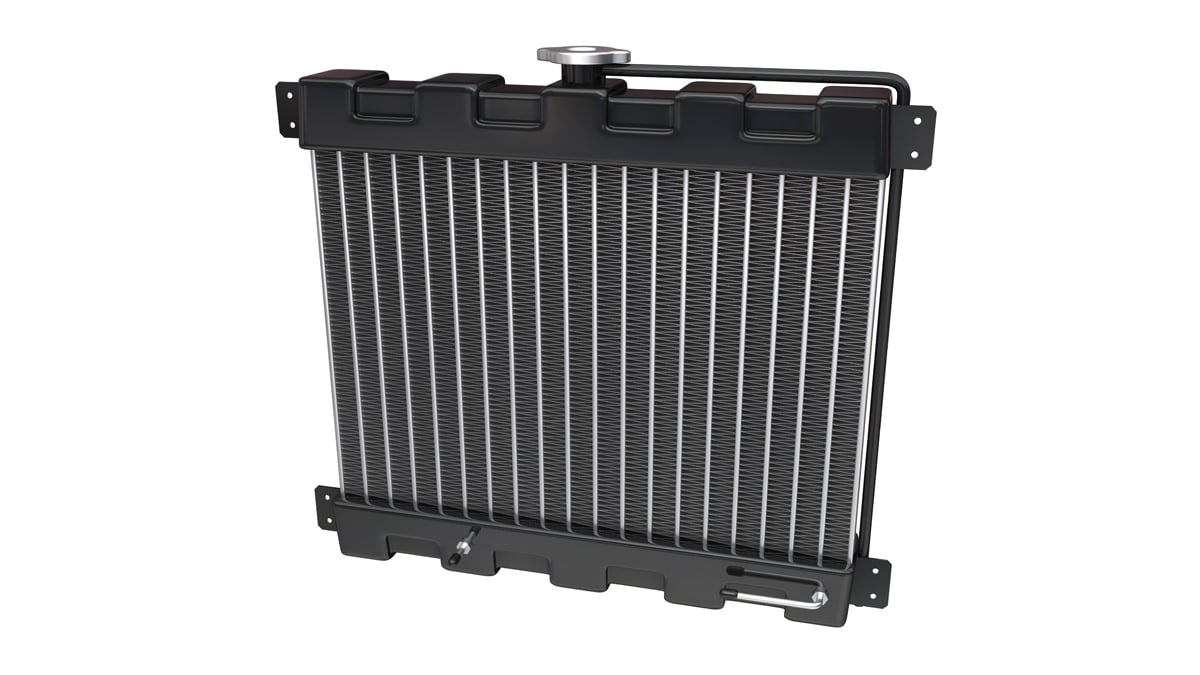

Liquid Cooled - Radiator

Liquid Cooled

Liquid-cooled generator engines such as the one used on this generator offer better temperature regulation, reduce thermal stress, and decrease noise levels. Additionally, this generator is designed for better heat dissipation making it more efficient than air-cooled engines. It can operate full-time without requiring a cooldown period.

Additional information

Weight 1100 kg
Dimensions 53 × 42 × 52 cm
Brand

Perkins

Specifications

Generator Specificatons
ModelAGi25H-T
TypeIndustrial Diesel Generator
Power25,000 Watts
EngineHatz 3H50TIC
AlternatorMecc Alte NPE32 VL2 C
ControllerDynaGen TG410
EnclosureSteel Powder Coated
Fuel Tank50 Gallon
Sound<65 dB
Output Voltage120 / 240 Volts
Output Current200 / 100 Amps
EmissionsEPA Tier 4
Dimensions w/o trailer
(LxWxH)
76" x 35" x 45"
Weight- lbs
*Specifications are subject to change
Engine Specifications
MakePerkins
Model403F-15G
Engine Power18.8 HP | 14 kWm
Cylinders3
RPM1800
Displacement1.496 Litres
Aspiration Natural
Cycle4 Stroke
Combustion systemIndirect injection
Compression ratio22.5:1
RotationAnti-clockwise, viewed on flywheel
Total lubricating capacity6.0 litres
Cooling systemWater cooled
Total coolant capacity6.0 litres
Fuel Consumption
100% Prime Power
4.27 l/hr | 1.13 gal/hr
ManufacturerMecc Alte
Model NumberNPE32 1M4 C
TypeIndustrial
Leads4 Wire
Generator StyleSingle-Bearing Generator
Power16.5 kW
Phase1
Voltage120/240
RPM1800
Frequency60 Hz.
Weight216 lbs.
Controller Specifications
MakeDynaGenDynaGen
ModelTG350TG410
Aurora GeneratorsStandardOptional
Controller Function -40 to +70˚C
-40 to +174˚F
-40 to +70˚C
-40 to +174˚F
ElectromagneticMeets or exceeds MIL-STD-461E
Conducted Emissions
Meets or exceeds MIL-STD-461E
Conducted Emissions
Display
Oil PressureYesYes
Engine TemperatureYesYes
Fuel LevelYesYes
Hour MeterYesYes
RPMYesYes
Real time clock with time/dateYesYes
Battery VoltageYesYes
AC VoltageYesYes
AC CurrentNoYes
(With optional CTs)
Modbus Connectivity NoYes
Maintenance counterYesYes
Auto start on Low BatteryYesYes
Two-Wire Auto StartYesYes
Manual StartYesYes
Exerciser ClockYesYes
150 Event LogYesYes
Passcode protectedYesYes
Automatic shutdowns and warningsYesYes
Pre-heat and many configurable timersYesYes
Warranty5-Year / 17,500 hour warranty5-Year / 17,500 hour warranty
DynaGen TG350 SpecificationsDynaGen TG410 Specifications
DynaGen TG350 User ManualDynaGen TG410 User Manual
Dynagen AccessoriesDynagen Accessories
DynaGen Rapidcore Software User ManualDynaGen Rapidcore Software User Manual
Rapidcore Software DownloadRapidcore Software Download
DynaGen TG350 Firmware 1.94.03DynaGen TG410 Firmware 1.94.03
DynaGen J1939 Reference ManuelDynaGen J1939 Reference Manuel
DynaGen Wiring Harness GuideDynaGen Wiring Harness Guide
DynaGen Modbus Reference Manual

Downloads


ModelDPU-3200-24
OutputDC Voltage24 V
Rated Current133 A
Rated Power3192 W
Voltage Adj. Range23.5-30 V
Voltage Tolerance±1.0%
Line Regulation±0.5%
Load Regulation±0.5%
Setup, Rise Time1500ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.)16ms / 230VAC at 75% load 9ms / 230VAC at full load
ProtectionOverload105 - 115% rated current
Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover
Over Voltage31.5 ~ 37.5V
Protection type : Shut down o/p voltage, re-power on to recover
Over TemperatureShut down o/p voltage, recovers automatically after temperature goes down
Function
Output Voltage Programmable (PV)
Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage
Please refer to the Function Manual in following pages

Constant current level programmable (PC)
Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual in following pages
Remote on-off controlBy electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual in following pages
Remote SenseCompensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual in following pages
Auxiliary Power5V @ 0.3A, tolerance±10%, ripple 150mVp-p, 12V @ 0.8A, tolerance±10%, ripple 450mVp-p
Alarm SignalIsolated TTL signal output for T-Alarm and DC-OK. Please refer to the Function Manual in following pages
EnvironmentWorking Temperature-30 ~ +70℃(Refer to "Derating Curve")
Working Humidity20 ~ 90% RH non-condensing
Storage Temp., Humidity-40 ~ +85℃, 10 ~ 95% RH non-condensing
Temp. Coefficient±0.03%/℃(0 ~ 50℃)
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety & EMCSafety StandardsUL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Generator Controller
DynaGen Controller TG350DynaGen Controller TG410
DynaGen TG350 SpecificationsDynaGen TG410 Specifications
DynaGen TG350 User ManualDynaGen TG410 User Manual
Dynagen AccessoriesDynagen Accessories
DynaGen Rapidcore Software User ManualDynaGen Rapidcore Software User Manual
Rapidcore Software DownloadRapidcore Software Download
DynaGen TG350 Firmware 1.94.03DynaGen TG410 Firmware 1.94.03
DynaGen J1939 Reference ManuelDynaGen J1939 Reference Manuel
DynaGen Wiring Harness GuideDynaGen Wiring Harness Guide
DynaGen Modbus Reference Manual

Perkins 403F-11G Downloads
Perkins | M0081088-01 | 403F-11G Engine Specifications
Perkins | SEBU9064-07 | 403F-11G | Operations and Maintenance Manual
Perkins | M0113102-03 | 403F-15G | Fluids Recommendations

Mecc Alte Alternator Downloads
NPE32 User Manual
ECP28 User Manual
DSR Voltage Regulator Manual
