12 kW Yanmar Diesel Generator

From $11,703.69

12 kW Yanmar Diesel Generator

• Yanmar 1800 RPM 3-cylinder diesel engine
• Can be used for full-time power if needed
• Brushless generator with automatic voltage regulation provides clean, safe power for all your sensitive electronics.
• Advanced instrumentation, protection and control with auto-start & exercise
• Compatible with all two-wire start systems
• Includes battery, residential muffler & fuel tank
• Available with silenced weather enclosure and high-capacity fuel tank

Add to Cart

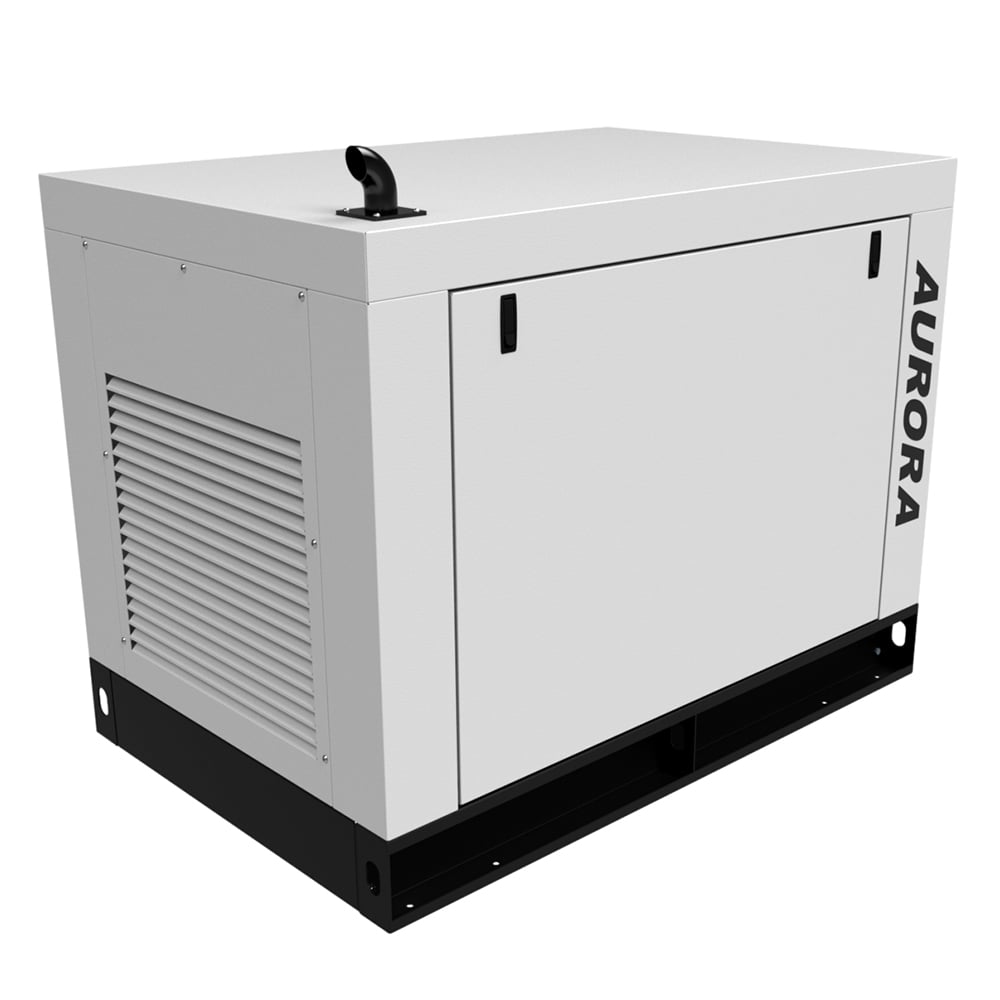

Yanmar powered home diesel generator - 12 kW
12 kW Yanmar Diesel Generator
From $11,703.69
Options & Accessories
Get Quote
Currency Switcher

Rating: 4.5 out of 5.
Shipping to USA and Canada
  • Insurance Included

12 kW Yanmar Diesel Generator

Tough-built AURORA generators like the 12 kW Yanmar Diesel Generator are top-rated for home emergency standby and full-time power in off-grid applications. Nothing lasts longer, costs as little to operate, or is as reliable as a Yanmar diesel generator. We guarantee AURORA Generators will outlast and outperform any natural gas, propane, or gasoline-powered generator, regardless of application!

The 12 kW generator is perfect for  people who have a home where they want to power their fridge, freezer, stove, water pumps, fans and all their lights. The 12 kW Yanmar diesel generator is typically present in homes that don’t have/or need to use central air conditioners. It will allow you to power a few window air conditioners easily. There’s a reason the farming, transportation and construction industries have been leveraging the benefits offered by diesel generators for years. Long Runtime Diesel-powered engines can work hard 24/7 for extended periods – up to 3 weeks if necessary – and still outlast any other engine type for a fraction of the operating costs.

Aurora Generators - Weather enclosure exploded view

Weather Enclosures:

Aurora enclosures, installed at the factory, work with their corresponding generator sets to ensure optimal performance, security, and operator safety while protecting against harsh weather conditions. These enclosures are constructed using galvannealed steel and equipped with stainless steel fasteners for increased resistance to corrosion. Additionally, lift-off doors and access panels provide easy access for service and maintenance.

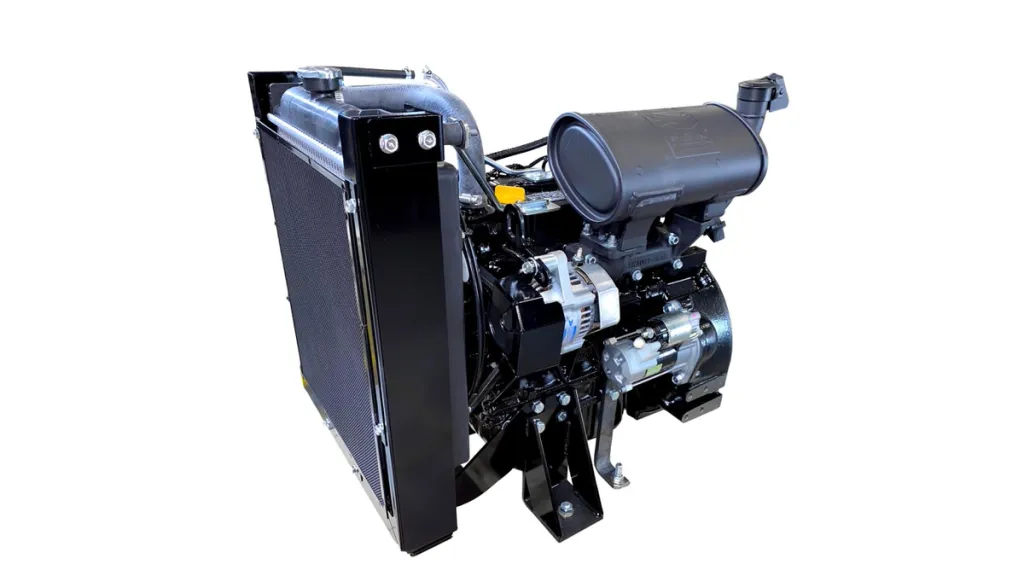

Yanmar 3TNM74F-NGGE Diesel Engine

Yanmar Engines

Yanmar engines can operate in harsh environments for sustained operations, making them ideal for power generation. The typical life expectancy is over 20,000 hours. You can find Yanmar engines used in boats and John Deere farm tractors.

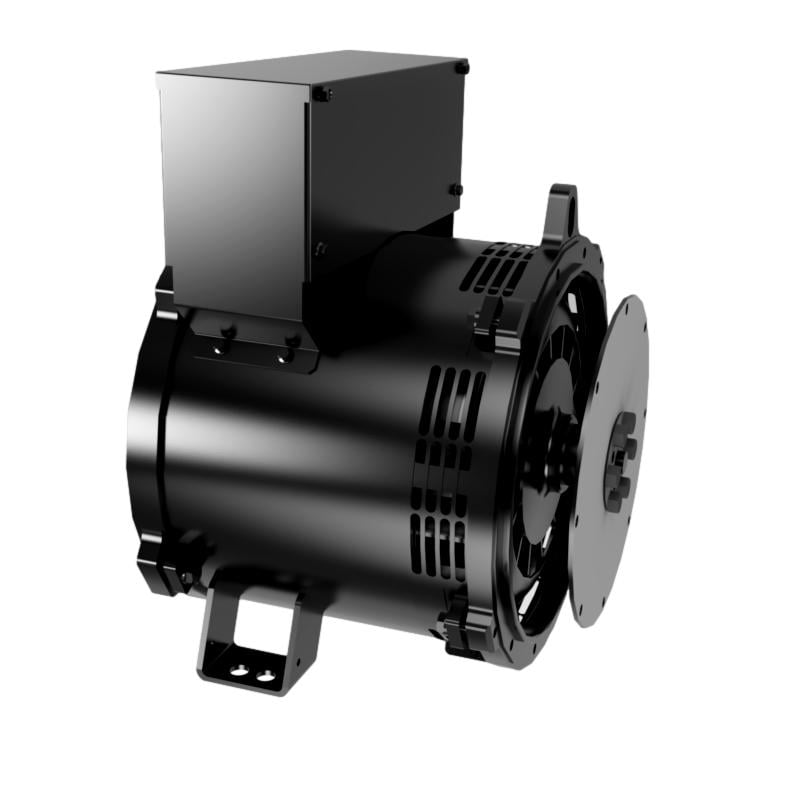

Mecc Alte NPE32

Generator Head

Our generator alternator, also known as a generator head, is a brushless and voltage-regulated device capable of producing clean and safe power for all your electrical needs. It features overload capability up to 300% for 20 seconds and maintains a voltage regulation of +/- 1%, ensuring stable and consistent power output. This generator alternator is suitable for various applications requiring reliable and safe power sources.

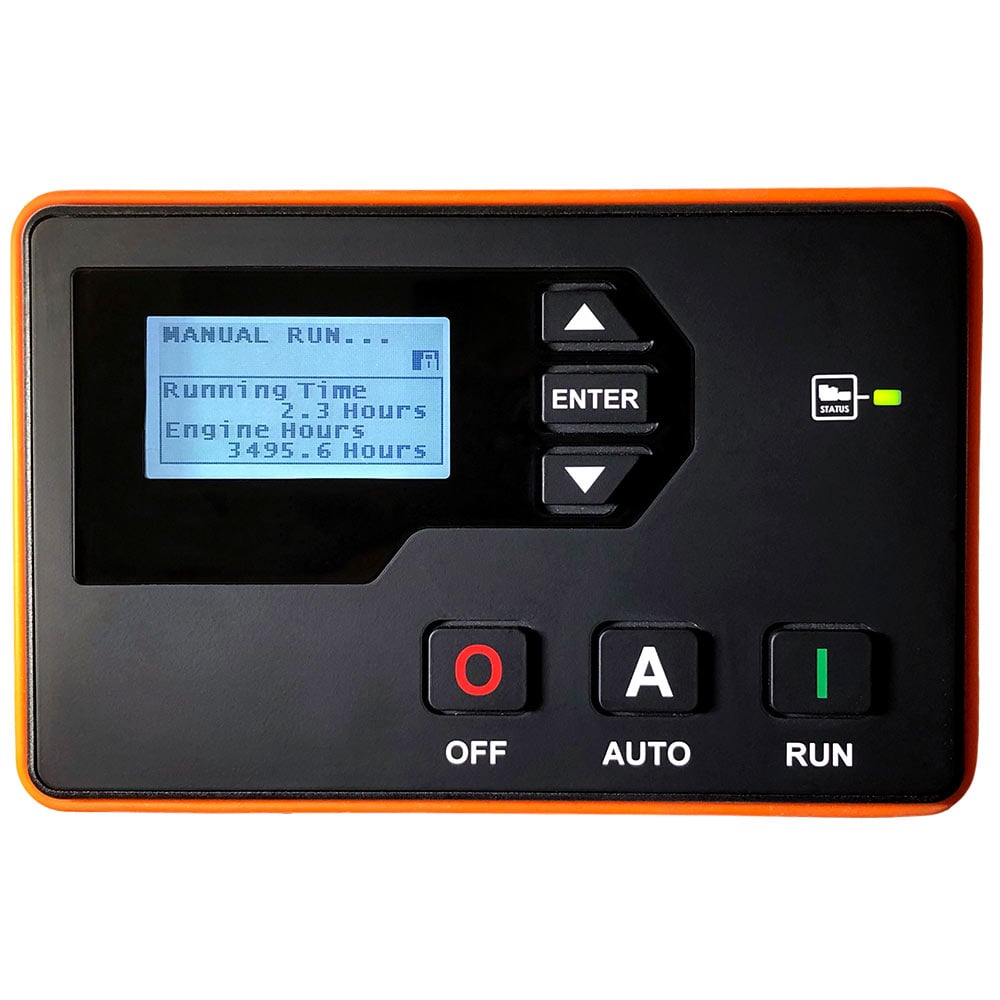

DynaGen TG410 TG350

Generator Protection, Monitoring and Control.

This Diesel Generator is equipped with a DynaGen controller, which offers comprehensive protection and control for its instrumentation. Known for its ruggedness and ability to function under challenging environments, the DynaGen controller is constructed to meet military specifications and is considered the most durable in the industry.

Aurora Support Staff

Lifetime Customer Support

Aurora Generators already offers the peace of mind that comes with the manufacturer’s warranty, covering all of the significant components used in the generators. However, the company goes above and beyond by offering free lifetime customer support. No matter when you need assistance, Aurora’s dedicated customer support team will be there to help you. With free lifetime customer support, Aurora Generators ensures that customers have the ongoing support they need, even after the sale, to ensure that the product runs smoothly and effectively.

5 Year Warranty on Aurora Generators

Flexible Warranty

Diesel-powered generators seldom have any restrictions and can be used non-stop if needed. However, the warranty for natural gas, propane, and gasoline-powered generators usually only covers emergency standby use.

Fuel Nozzle

Cost Effective

A diesel-powered generator can save over $100.00 in fuel per day when used to power a home, compared to natural gas, propane, or gasoline. This is because diesel fuel has a higher energy density than other fuels, meaning less fuel is required to generate the same amount of power. For example, a typical home would use 0.5 gallons of diesel an hour, while it would need 4-6 gallons of propane to generate the same amount of power.

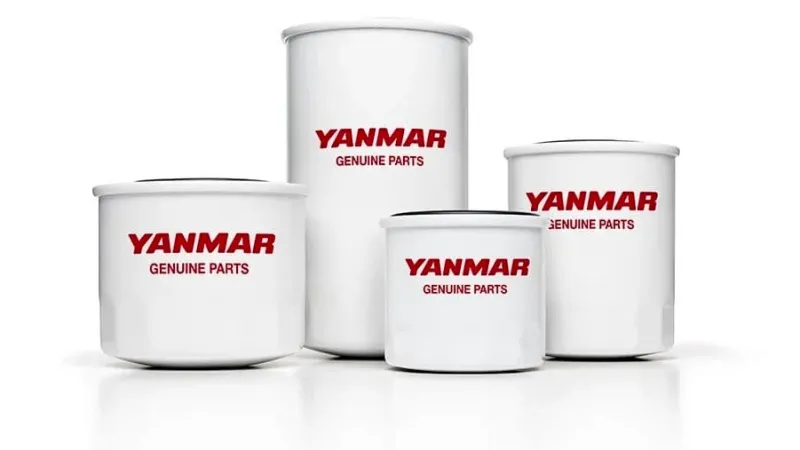

Yanmar Filters for Maintenance

Low Maintenance

You only need to change the oil and filter every 500 hours instead of every 100 hours for a non-diesel generator.

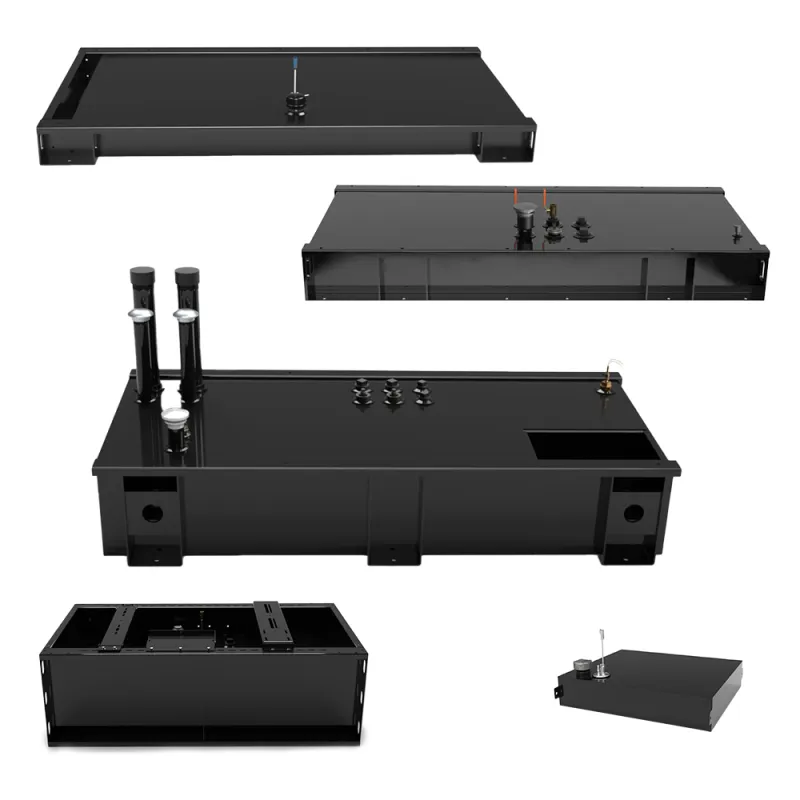

Diesel Fuel Tanks

Fuel Tank Options

This generator comes equipped with an internal fuel tank. However, larger external fuel tanks can be purchased as an option for those requiring an extended, uninterrupted operation.

Additional information

Weight 624 kg
Dimensions 145 × 84 × 104 cm
Weather Enclosure

Include Weather Enclosure, No Weather Enclosure

Fuel Tank

No Fuel Tank, 12 Gallon Fuel Tank, 50 Gallon Fuel Tank (USA), 100 Gallon Fuel Tank (Canada), 100 Gallon Fuel Tank (USA)

Brand

Yanmar

Model

AGi12Y

Generator Type

Emergency Standby, Off-Grid, Prime Power

Output Power

12 kW

Output Voltage

120/240 Volts

Output Current

100 / 50 Amps

Yanmar Engine

3TNV88F-UGGE

Mecc Alte Alternator

NPE32 1M4 C

Downloads

AGi12Y-E Downloads
AGi12Y-E Specifications PDF
• AGi12Y-E 3D CAD PDF (with standard fuel tank)

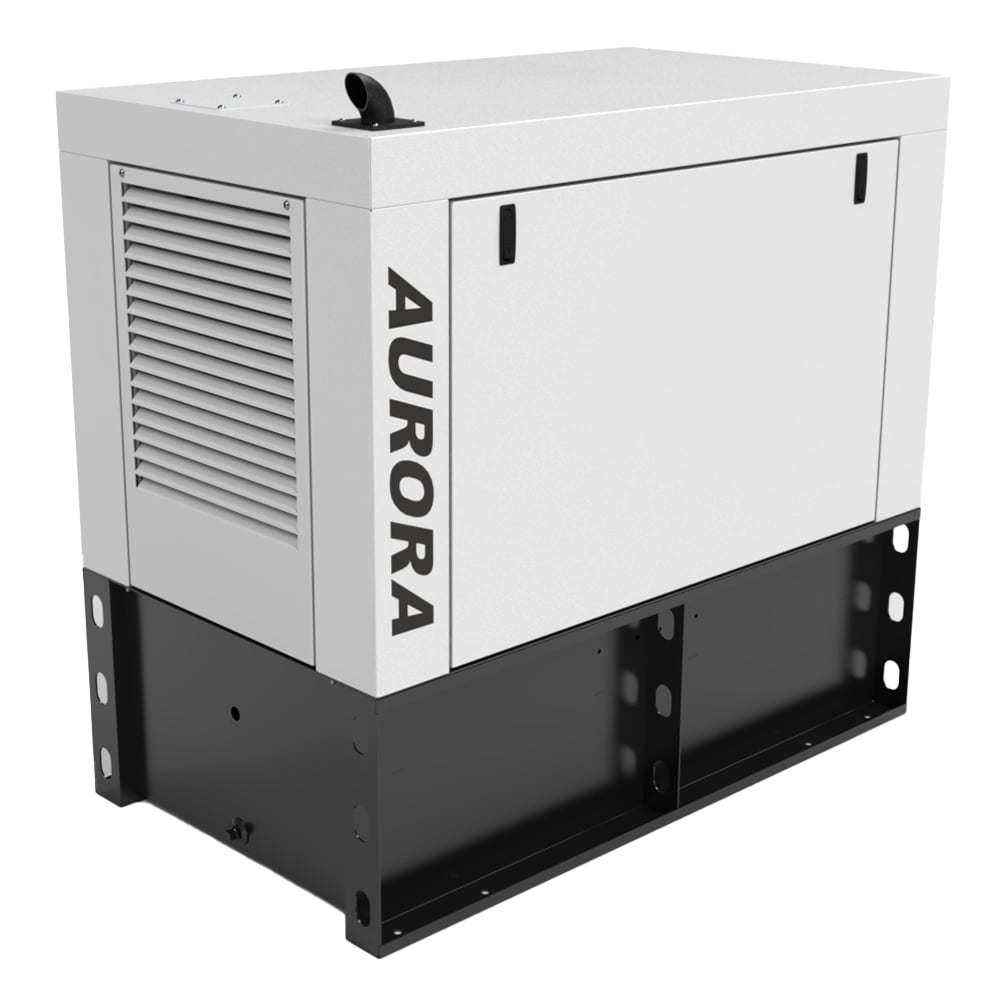

AGi12Y-E-50 3D CAD PDF (with 50 gallon fuel tank)

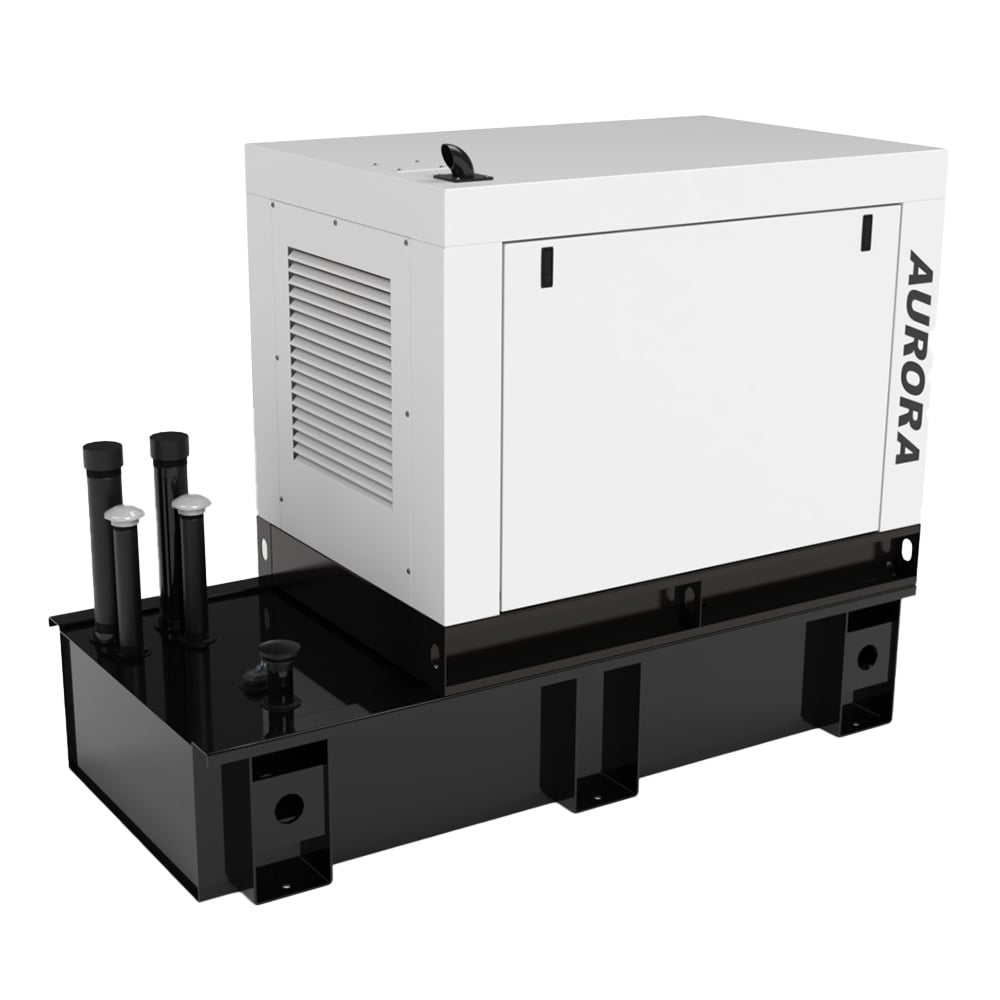

AGi12Y-E-100 3D CAD PDF (with 100 gallon fuel tank)

Yanmar Engine 3TNV88F-UGGE Downloads
Yanmmar 3TNV88F-UGGE Data Sheet
Yanmar | 3TNV88F-UGGE | Parts Manual
Yanmar 3TNV88F Service Manual
Yanmar TMN TNV Service Manual
Industrial Engine Assembly Instructions
Fuel Filter

Mecc Alte Alternator Downloads
NPE32 User Manual
ECP28 User Manual
DSR Voltage Regulator Manual

Generator Controller
DynaGen Controller TG350DynaGen Controller TG410
DynaGen TG350 SpecificationsDynaGen TG410 Specifications
DynaGen TG350 User ManualDynaGen TG410 User Manual
Dynagen AccessoriesDynagen Accessories
DynaGen Rapidcore Software User ManualDynaGen Rapidcore Software User Manual
Rapidcore Software DownloadRapidcore Software Download
DynaGen TG350 Firmware 1.94.03DynaGen TG410 Firmware 1.94.03
DynaGen J1939 Reference ManuelDynaGen J1939 Reference Manuel
DynaGen Wiring Harness GuideDynaGen Wiring Harness Guide
DynaGen Modbus Reference Manual
